Amplificador de potencia: CLASE A

Class A power amplifier — Lesson summary

Key concepts

• Power amplifiers are common in audio/video equipment and often fail because they drive the final stages; understanding their operation speeds diagnosis and repair.
• Amplifier classes overview: A, B, AB, C, D, E, F, H, I, etc. This lesson concentrates on Class A.
• Class A operation:
  • The transistor is biased in its active region at a quiescent point (Q‑point).
  • The Q‑point is typically set so the collector–emitter voltage (Vce) is about half the supply voltage to allow maximum symmetric output swing.
• Transistor basics:
  • Three terminals: base, collector, emitter.
  • Modes: cutoff (off), saturation (on), active (amplifying).

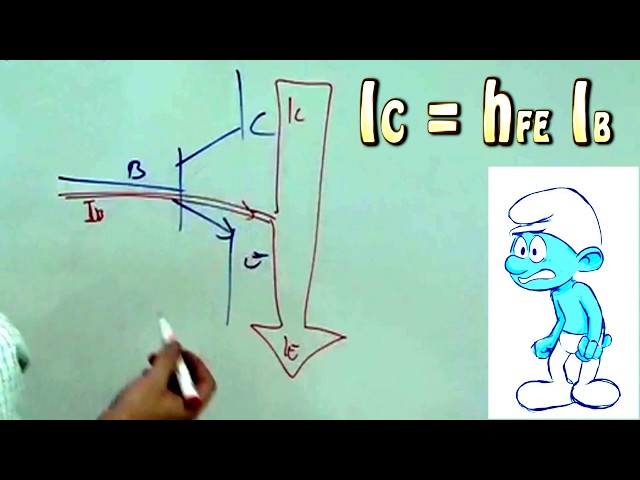

  • Small base voltage/current changes produce much larger changes at the collector (current gain β), so small input variations are amplified.
• Biasing:
  • Resistors (commonly 2–4) set the DC operating point (Q‑point).
  • On PCBs transistors are often labeled Q1, Q2, etc.
• Signal behavior:
  • The input audio/video signal rides on top of the DC bias at the base (for example, 3.0 V ± small variation).
  • Small base variations cause larger collector current/voltage swings.
  • In a common‑emitter stage the output is inverted (phase‑reversed); the information is preserved and may be re‑inverted later if required.
• Small‑signal vs. power amplifiers:
  • Same basic topology, but power amplifiers use larger transistors and components to handle higher current and wider voltage excursions (output swings toward 0 V or the supply rail).
• Practical repair/test tip (conceptual):
  • Find and set the Q‑point (Vce ≈ ½ Vcc) to verify proper biasing; knowing typical symptoms lets you target failing parts instead of swapping parts at random.

Practical tip: Verify the Q‑point — measure Vce and look for roughly half the supply voltage on a properly biased Class A output transistor.

Tutorial / guide takeaways (actionable steps)

1. Identify the final power transistor(s) on the board (look for components labeled Qx).
2. Measure DC Vce (collector to emitter). Expect approximately ½ Vcc for a correctly biased Class A stage.
3. Check the bias network resistors that establish the base voltage and Q‑point.
4. Inject a small signal or observe the audio input riding on the DC bias to verify amplification and phase inversion at the output.
5. If the amplifier fails, consider the power‑stage transistors and their associated bias components as the most likely culprits.

Notes and context

• The instructor emphasizes learning fundamentals (like a doctor diagnosing symptoms) rather than replacing parts blindly.
• Everyday metaphors (mechanic, doctor) are used to illustrate troubleshooting approach.
• Other amplifier classes will be covered in later lessons.
• Subtitles in the video cut off before listing typical failure modes, but the speaker suggests the final stage/transistor is the common failure point because it handles the most current.

Main speaker / source

• Unnamed instructor/professor (video presenter, referred to as “professor” in the subtitles).
• Video title: “Amplificador de potencia: CLASE A.”
