Il Pendolo di Foucault

Foucault Pendulum: Scientific Principles and Demonstration

The video explains the scientific principles and demonstration of the Foucault Pendulum, a device invented by French physicist Léon Foucault in 1851 to visually prove the Earth’s rotation.

Scientific Concepts and Phenomena

• Earth’s Rotation Demonstration: The Foucault Pendulum shows that the Earth rotates on its axis by the apparent rotation of the pendulum’s plane of oscillation relative to the Earth’s surface.

• Pendulum Oscillation Plane: While the pendulum’s plane of oscillation remains fixed relative to the stars (inertial frame), an observer on Earth sees this plane rotate because the Earth moves beneath it.

• Dependence on Latitude: The rate of rotation of the pendulum’s oscillation plane depends on the observer’s latitude. At the North Pole, it completes a full rotation in 24 hours. At other latitudes, the period is longer and calculated by dividing 24 hours by the sine of the latitude.

• Initial Conditions: The pendulum must be massive and long to minimize friction and air resistance, allowing a slow, steady oscillation.

• Trajectory of the Pendulum: The pendulum’s path is not a simple back-and-forth line but an oval or rosette shape due to the Earth’s rotation imparting a tangential velocity at the start.

• Laboratory vs Earth Frame: From a fixed laboratory frame (non-rotating), the pendulum’s plane does not change. From the rotating Earth frame, the pendulum’s plane appears to rotate.

• Verification of Earth’s Rotation: By measuring the angular displacement of the pendulum over time, the experiment confirms the Earth’s rotation direction (counterclockwise in the Northern Hemisphere) and speed.

Methodology and Experimental Setup

• Use a heavy pendulum (e.g., 28 kg) suspended from a very high point (e.g., 67 m from the Pantheon dome).
• Start the pendulum smoothly using the “burnt wire” method to avoid lateral jolts.

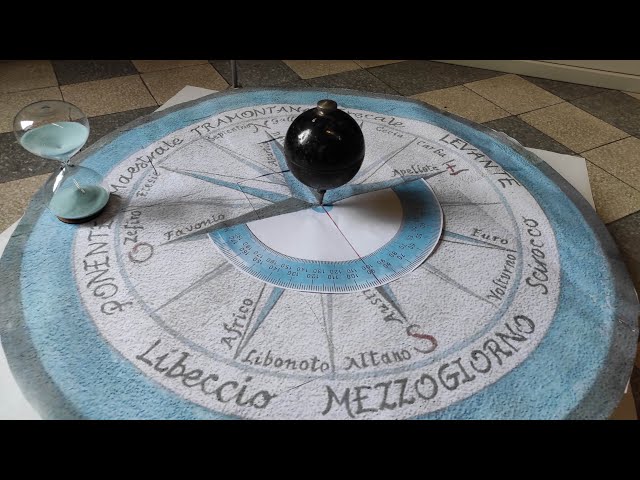

• Measure the angular displacement of the pendulum’s oscillation plane over time using a dial with angular markings.
• Calculate the expected rotation period using the formula:

[ T = \frac{24 \text{ hours}}{\sin(\text{latitude})} ]

• Compare observed rotation with theoretical predictions to confirm Earth’s rotation.

Researchers and Sources Featured

• Léon Foucault: French physicist who invented the pendulum experiment in 1851.

• Viviani: Earlier researcher who noticed pendulum oscillation plane rotation in Florence.

• Seneca: Quoted for a philosophical phrase about directing sails, metaphorically linked to understanding natural phenomena.

---

This summary captures the core scientific principles, experimental design, and interpretation of the Foucault Pendulum demonstration as presented in the video.
