Summary of Circuito RC serie a regime sinusoidale

Summary

The video discusses the analysis of a series RC Circuit operating under sinusoidal conditions. It covers the calculation of current, Impedance, and phasor diagrams, along with the behavior of the circuit components in response to a sinusoidal voltage input.

Key Scientific Concepts and Discoveries:

Sinusoidal Circuits: The analysis focuses on circuits powered by sinusoidal voltage, specifically a series RC Circuit.
Impedance: The total Impedance of the circuit is calculated by combining the resistance (R) and the capacitive reactance (Xc).
Phasor Representation: The video explains how to convert time-domain signals into phasor representations, allowing for easier calculations.
Phase Relationships: The current leads the voltage in an RC Circuit, with a specific phase difference calculated.
Effective Values: The effective (RMS) value of the current and voltage are derived from their maximum amplitudes.

Methodology:

Identify Circuit Parameters:
- Voltage: 220 V (RMS), 50 Hz frequency, phase = 0
- Resistance (R): 120 Ohm
- Capacitance (C): 12 µF
Calculate Impedance:
- Calculate capacitive reactance (Xc) using the formula: X_c = \frac{1}{\omega C}
- Combine resistive and capacitive impedances: Z = R - jX_c

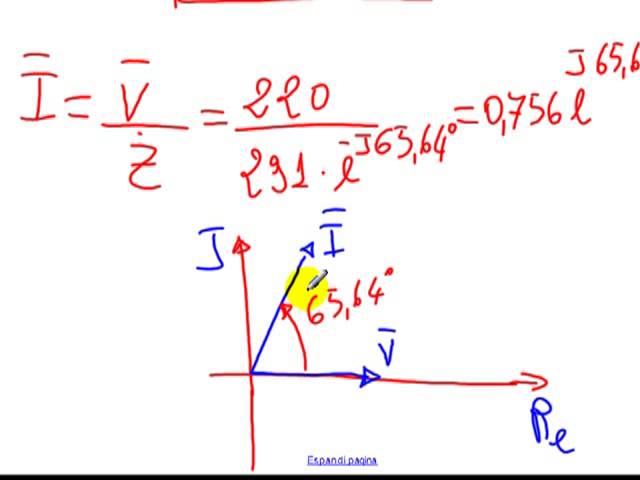

Phasor Calculations:
- Convert voltage to phasor form.
- Calculate current phasor using Ohm's law in phasor form: I = \frac{V}{Z}
- Determine the magnitude and phase of the current.
Time Domain Representation:
- Convert the current phasor back to the time domain using: i(t) = I_{max} \sin(\omega t + \phi)
- Where I_{max} = I_{effective} \times \sqrt{2}.
Phasor and Impedance Diagrams:
- Draw diagrams to visualize the relationships between voltage, current, and Impedance.

Researchers or Sources Featured:

No specific researchers or sources are mentioned in the subtitles. The content appears to be instructional material likely from an educational source or instructor.
