Summary of "7 Framing CRC"

The video titled "7 Framing CRC" provides an in-depth explanation of data framing at the Data Link Layer and the use of Cyclic Redundancy Check (CRC) for error detection in communication networks. It primarily focuses on the High-Level Data Link Control (HDLC) protocol and the technical mechanisms involved in framing, Bit Stuffing, and CRC generation and verification.

Key Technological Concepts and Product Features:

Data Link Layer Framing:

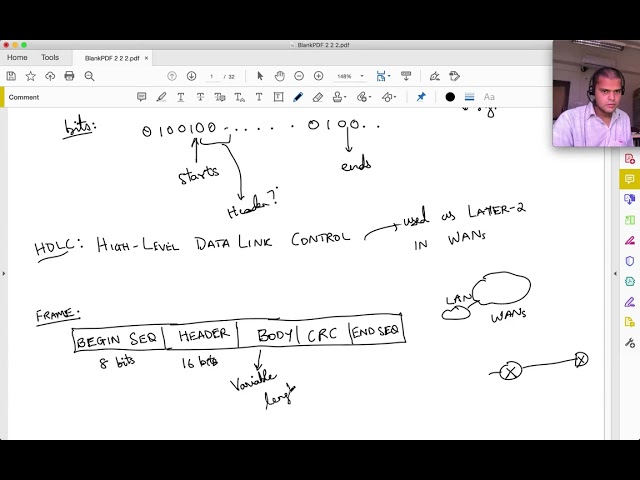

- The video explains how bits received from the physical layer are grouped into meaningful units called frames at the data link layer.
- Frames consist of:
  - A begin sequence (start flag),
  - A header (16 bits),
  - A body (variable length),
  - A CRC (16 or possibly 32 bits),
  - An end sequence (same as the begin sequence).
- The example protocol discussed is HDLC, widely used in Wide Area Networks (WANs).
Frame Delimitation and Bit Stuffing:
- The start and end of frames are marked by a specific bit pattern (flag sequence).
- To prevent confusion if this sequence appears in the data, Bit Stuffing is used:
  - Whenever five consecutive ones occur in the data, a zero is inserted after them at the sender.
  - The receiver removes these stuffed zeros before processing the frame.
- This ensures the flag sequence only appears at frame boundaries, preventing misinterpretation.
Error Detection with CRC:
- CRC is introduced as a method to detect bit errors within frames.
- The CRC is appended to the data to form a code word.
- Only certain code words are valid, and if the received code word is invalid, an error is detected.
- The concept of Hamming distance is explained to illustrate how CRC codes are designed to maximize error detection capability by ensuring code words are sufficiently different.
Mathematical Foundation of CRC:
- CRC is based on cyclic codes and operations over a finite field GF(2) (binary field).
- Addition in GF(2) corresponds to XOR operation.
- The CRC is generated by dividing the data word (appended with zeros) by a generator polynomial (divisor).
- The remainder of this division is the CRC.
CRC Generation Algorithm:
- The data word is appended with k zeros (where k is the length of the CRC).
- Polynomial long division (using XOR instead of subtraction) is performed with the generator polynomial.
- The remainder is the CRC bits appended to the data.
Hardware Implementation of CRC:
- CRC calculation can be efficiently implemented using Shift Registers and XOR Gates.
- The circuit shifts bits in every clock cycle and XORs bits depending on the leading bit in the register.
- This hardware approach enables fast CRC computation suitable for high-speed data streams.
CRC Verification at Receiver:
- Two methods:
  - Recompute CRC from received data and compare with received CRC.
  - Feed entire received code word into CRC circuit and check if remainder is zero.
- If mismatch or non-zero remainder, an error is detected and the frame is discarded.

Analysis and Practical Notes:

The video highlights practical issues such as what happens if bit errors cause confusion in frame delimitation or Bit Stuffing.
It explains how errors are handled by discarding corrupted frames and waiting for the next valid frame start sequence.
Limitations of CRC are acknowledged: it cannot detect all possible bit errors, but is effective enough for practical use.
The use of HDLC and CRC is contextualized within network layers, distinguishing between frames (data link), packets (network), and segments (transport).

Tutorials and Guides Included:

Step-by-step explanation of framing and Bit Stuffing in HDLC.
Detailed algorithm for Bit Stuffing and unstuffing.
Mathematical derivation and example of CRC generation using polynomial division.
Explanation of how to implement CRC calculation using Shift Registers and XOR Gates.
Discussion on how to verify CRC at the receiver side.

Main Speaker/Source:

The video appears to be a lecture-style tutorial, likely from a university-level computer networking or digital communications course.
The speaker is an instructor explaining concepts clearly with examples and diagrams, though no specific name is given in the subtitles.

In summary, the video offers a comprehensive technical overview of framing at the data link layer, focusing on HDLC protocol framing, Bit Stuffing to avoid frame boundary confusion, and the use of CRC for error detection, including both theoretical and hardware implementation perspectives.
