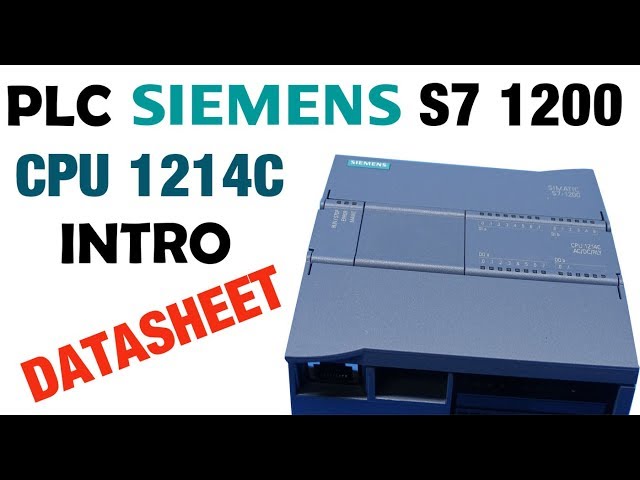

PLC SIEMENS S7 1200 CPU 1214, INTRODUCCIÓN, FUNCIONAMIENTO Y CARACTERÍSTICAS (DATASHEET)

Video Summary

The video provides an introduction to the Siemens S7-1200 PLC, specifically focusing on the CPU 1214 model. Key points discussed include:

• Product Overview
  • The presenter opens the product and highlights its features, including the communication interface (Profinet), digital and analog inputs/outputs, and the need for external memory and modules.
  • The CPU supports both AC and DC power supply options, with specifications on voltage and current consumption.
• Technical Specifications
  • The CPU has 14 digital inputs and 10 digital outputs, with detailed specifications on voltage levels for inputs and outputs.
  • The analog inputs are limited to two, and for analog outputs, additional modules must be purchased.
  • The internal power supply operates at 24V, and the CPU can handle a range of input voltages from 120V to 230V.
• Programming and Configuration
  • The presenter demonstrates how to connect the PLC to a computer using a UTP cable and set up the programming environment in the Siemens Portal software.
  • A brief tutorial on creating a new project, configuring the device, and compiling the program is provided.
  • The presenter illustrates a simple programming example involving timers and outputs, showcasing how to manage the PLC's operations.
• Additional Features
  • The CPU includes a real-time clock, and the presenter notes the longevity of relay operations.
  • The video emphasizes the importance of correct voltage and frequency settings to avoid damaging the PLC.
• Future Content
  • The presenter invites viewers to subscribe for more tutorials and guides related to PLC programming and features.

Main Speakers/Sources

• The video is presented by an unnamed individual who shares personal experiences and insights related to the Siemens S7-1200 PLC.
