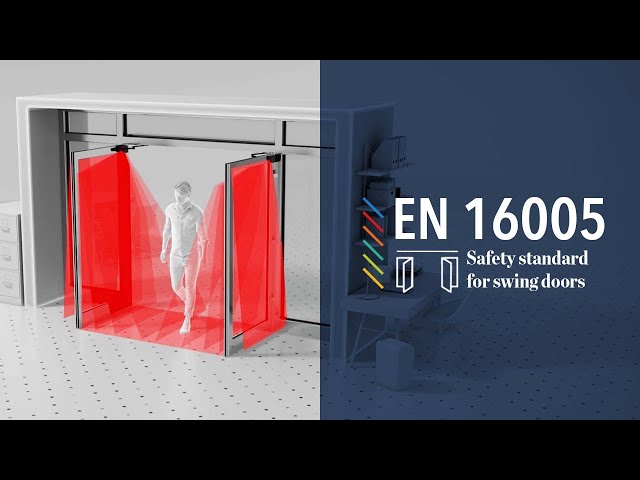

Summary of "EN 16005 safety standard for swing doors (legal)"

The video explains the EN 16005 safety standard, which is a harmonized legal requirement for automatic swing doors under the Machinery Directive. It outlines the necessary safety measures to prevent door contact with users, especially in environments with vulnerable populations such as elderly, disabled, or children.

Main Points and Strategies:

Legal Context: Automatic doors are considered machines and must comply with the Machinery Directive law. Following EN 16005 is the easiest way to meet these legal safety requirements.
Key Safety Requirement: No contact between the door and users is acceptable, particularly in high-risk environments (hospitals, kindergartens) where vulnerable users are present.
Risk Assessment: Doors and their environments are categorized as either:
- High risk: Full safety coverage mandatory.
- Tolerated risk: Partial safety coverage may be acceptable based on the risk assessment.
High-Risk Environment Requirements:
- Protect the entire door width during opening and closing.
- Secure the leading edge of the door.
- Protect the hinge area.
- Applies to all door types, including low-energy doors.
Sensor Solutions for High Risk:
- Four Safe Sensor with two cards: covers full door width; additional hinge safety needed.
- Flat Scan SW: covers door leaf and hinge area.
- Flat Scan 3D SW: volumetric coverage eliminating all risks, suitable for any situation and fully compliant.
Tolerated Risk Environment (e.g., office buildings):
- Partial safety coverage required.
- On low-energy doors, dual leaf safety is not required, but finger protection is mandatory.
- Leading edge and hinge area must be secured per Annex G of EN 16005.
- Sensor solutions:
  - Four Safe Sensor with one card: covers most dangerous door leaf area; hinge protection still needed.
  - Flat Scan SW: all-in-one solution covering door leaf and hinge.
  - Flat Scan 3D SW can be used for extra comfort.
Exceptions Requiring Full Coverage in Tolerated Risk:
- Distance between wall and open door leaf is less than 50 cm.
- Door opens into a busy pedestrian traffic area.

Summary of Safety Coverage Requirements:

Full safety coverage:
- Significant vulnerable user presence (elderly, disabled, children).
- Door opens into busy pedestrian areas.
- Wall-door leaf distance < 50 cm.
Partial safety coverage:
- Other tolerated risk environments, especially on regular automatic swing doors.
No door leaf safety required:
- Low-energy doors in tolerated risk environments.
Hinge area safety:
- Mandatory in all cases for all automatic swing doors.

Methodology for Compliance:

Conduct a risk assessment of the door environment.
Determine if the environment is high risk or tolerated risk.
Choose appropriate sensor solutions based on risk level and door type.
Install sensors according to EN 16005 specifications.
Ensure hinge area protection is always implemented.

Presenter/Source:

The video appears to be presented by a company or expert specializing in automatic door safety solutions, focusing on compliance with EN 16005 standards. No specific individual presenter is named.
