Summary of Gas Furnace Ignition Control Modules!
Video Summary

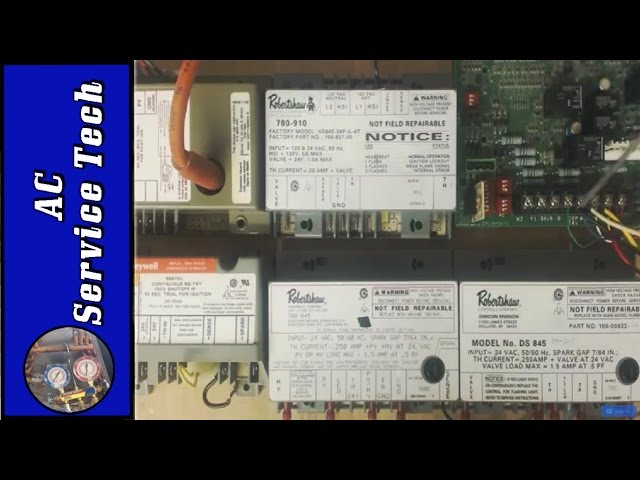

In this video, AC Service Tech discusses various types of Ignition Control Modules used in gas furnaces, focusing on their functionalities and differences. Key points include:
Types of Ignition Control Modules
- Pilot Ignition vs. Direct Ignition:
- Pilot Ignition modules have pilot valves (PV) and main valves (MV), while Direct Ignition modules do not require a pilot.
- Direct Ignition systems ignite fuel directly from the burner tubes, making them more efficient.
Components and Functionality
- Single Rod vs. Two Rod Setups:
- Single rod setups combine spark and flame sensing functions in one rod, while two rod setups use separate rods for sparking and sensing.
- Voltage Requirements:
- Typically, 24 volts is used to activate the ignition process, with high voltage (6,000 to 20,000 volts) generated for sparking.
- Flame sensing rods operate with 90 to 120 volts, which is rectified to DC microamps to confirm flame presence.
Flame Rectification Process
The flame rectification process is essential for proving the presence of a flame, which is done through a ground wire connected to the gas valve or frame. A clean sensing rod is critical for accurate flame detection; it should be cleaned with unsalted steel wool to prevent insulation issues.
Vent Dampers
Vent Dampers are used in some systems to retain heat within the furnace or boiler, affecting the ignition control's operation.
Direct Spark Ignition
Direct Spark Ignition systems are common in packaged units, where the ignition process is initiated by applying 24 volts and generating high voltage sparks.
Maintenance Tips
Regular cleaning of the Flame Sensing Rod is recommended to ensure proper function and flame detection.
