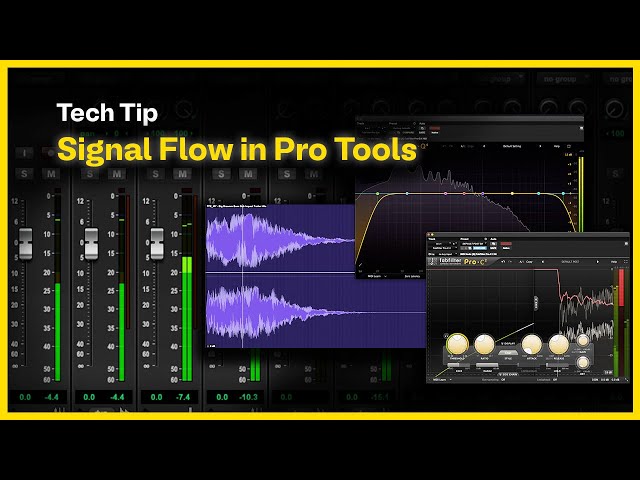

Mastering Signal Flow in Pro Tools (pt 1)

Main summary

Key takeaways

Educational

Main ideas / lessons

  • Clip volume and track volume are not the same in Pro Tools because they affect signal flow at different points in the chain.
  • Understanding the exact order of processing is crucial: boosting/lowering at different stages changes what gets pushed into later components (plugins, compressor thresholds, buses, etc.).
  • Inserts, volume, panning, outputs, and sends each occur in a specific sequence and shape how dry and wet/effects mixes are built.
  • VCAs are control elements (a group “volume controller”), not an additional audio-processing stage.
  • Master tracks can intercept audio between a bus and its destination, changing where mastering/processing occurs in the signal path.

Pro Tools signal flow order (timeline → speakers / bus / effects)

1) Clip inherent volume (Unity gain concept)

  • When a clip is placed at 0 dB (unity gain), its level is the original audio level.
  • This is the baseline before any clip gain/volume automation is applied.

2) Clip Gain (clip-level gain adjustment)

Clip gain is adjusted via:

  • The fader icon under the clip (drag up/down), ranging from -infinity to +36 dB
  • The clip gain line (typically using the Smart Tool)
  • If the clip gain line is missing:
    • Enable it via View → Clip
    • Ensure clip gain line / clip gain info are turned on

Returning to unity:

  • Option-click the clip gain line, or
  • Control + Shift + B to reset the current selection to unity

Why it matters: clip gain changes what later processing stages (especially plugin inputs) receive.

3) Inserts (plugins, in chain order)

  • After clip gain, the signal goes into the track’s inserts (plugins).
  • Order matters: plugins process sequentially down the chain (A → B → C → …).

Example given:

  • With Pro-Q4 then Pro-C2:
    • Lowering clip gain makes the signal lower inside the plugins.
    • Boosting clip gain makes the signal higher inside the plugins.

Important warning:

  • You can clip plugin inputs, which may cause distortion/aliasing and other unwanted artifacts.

Compressor-specific explanation:

  • Threshold at 0: most signal passes, but boosting can still cause input/output clipping.
  • Lowering the threshold causes more gain reduction/compression, especially if the signal feeding the compressor is louder.
  • Goal: avoid clipping into the compressor before it reaches the threshold you intend.

4) Volume (track volume)

  • The signal then reaches track volume (automation lane / volume control).
  • Key rule: Volume comes after inserts, not before.
  • Consequence described:
    • Reducing volume reduces the output level after plugin processing.
    • You do not change how much signal reaches the plugins—the plugin activity is determined earlier by clip gain and the inserts stage input.

5) Panner

  • Next, the signal goes into the panner (stereo or multi-channel).
  • Pan redistributes the signal across channels (left/right or multi-channel equivalents).
  • Demonstrated behavior: panning right sends it more to the right-side meter/channel(s).

6) Track Output → assigned destination (folder/bus)

  • After panning, audio goes to the track’s output destination.
  • Example described: track output set to an AFX folder (receiving routing destination).
  • Increasing track volume increases how much signal reaches that folder.
  • Pan affects how the routed signal appears (e.g., stereo-wide vs more directional).

Parallel routing: Sends (dry + effects)

7) Sends happen in parallel with the main output

  • Alongside the main output routing, the audio also goes to a send (if send level is above -infinity).
  • The signal splits:
    • Main path continues to the folder/output
    • Send path goes to a bus destination determined by routing (via IO window buses)

Send level control logic:

  • The send fader controls how much signal is sent to the effect destination.
  • Example relationship noted:
    • If track volume is decreased, the send amount is also reduced
    • If track volume is increased, the send amount increases

Example reverb chain:

  • Clip → inserts → volume → pan → (main output to folder/stem input) = dry path
  • Simultaneously: send → reverb return input → reverb plugin (e.g., Altverb) → effect stem

Result:

  • A parallel mix of:
    • Dry (direct to the stem/folder path)
    • Wet (reverb return into the same stem)

Purpose:

  • Balance send level vs dry to adjust perceived distance (close/distant sound).

VCAs (control, not part of core signal flow)

What a VCA does

  • VCAs are not a traditional signal path stage where audio passes through.
  • A VCA is assigned to a group of tracks (created via grouping, e.g., Command+G after selecting tracks).
  • It acts as a controller/trim for volume:
    • The example describes a blue “delta” line showing an applied difference (e.g., “-21”).
  • Functionally:
    • It adjusts the effective volume of included tracks.
    • It does not represent additional insert processing—it controls volume as a multiplier/offset behavior.

Master tracks (intercepting audio on the bus)

How master tracks sit in the chain

  • Normally, track output goes directly to its destination (folder).
  • If a master track is created (example: 7.1.2 to Master Fader), it sits on the bus, not after the destination.
  • Analogy given:
    • A bus is like a cable; audio travels along that bus.
    • The master sits in the middle, intercepting and processing before audio reaches the folder destination.

What master processing affects

Because it intercepts on the bus:

  • Master volume and inserts affect audio before it reaches the destination (e.g., the folder).

Example usage described:

  • Masters used when bouncing stem deliverables:
    • stems sent to bounce stems
    • masters apply limiting/compression
    • may also fold down (e.g., spanner + panner) to create different deliverables

Practical takeaway: clip gain vs volume

  • When someone asks “Why clip gain vs volume?”:
    • The difference matters because each affects signal at a different point in the chain.

Consequences:

  • Using clip gain changes what hits plugins, affecting downstream behavior (including compressor behavior and risk of plugin input clipping).
  • Using volume adjusts after inserts, changing final output level and bus/summing behavior without changing how plugins were driven.
