How I Wire a Control Cabinet: MASSO AC Servo Spindle

Summary

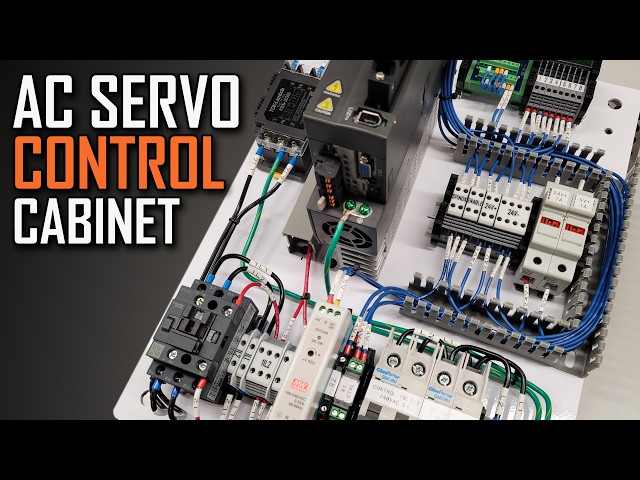

James documents the design and wiring of a control cabinet for an AC servo spindle on his CNC mill. The cabinet is built around a 1 kW servo motor and a drive recommended for that motor by AutomationDirect. The video covers the electrical design, panel layout, labeling, wiring, and lessons learned. The system has not yet been powered up or tested.

Electrical Design and Control Logic

James created the wiring diagrams in SkyCAD Electrical, using its free version. He split the design across three sheets: the drive’s power connections, control connections, and RS-485 interface for a planned HMI.

The drive has separate control-power and motor-power inputs. Although the motor-power input can support three-phase power, this installation uses single-phase power.

The intended control sequence is:

1. MASSO supplies fused 24 V to a relay.
2. The relay switches AC control power to the servo drive.
3. MASSO’s enable signal connects to the drive’s Safe Torque Off (STO) function.
4. Once initialized, the drive returns a “spindle ready” signal to MASSO.
5. The ready signal also activates a second relay, which energizes the main contactor and supplies power to the motor drive.

If MASSO loses power, the enable signal is removed, or the drive reports a fault, the arrangement is intended to shut off the drive’s AC input. Control power remains available for resets or signals, while STO provides another way to disable motor torque.

A fused 5 V supply is also planned for a future HMI. The HMI may display torque and load and could eventually provide spindle controls.

Panel Construction and Labeling

James used a dimensioned drawing from his 3D model to mark the back panel, drill mounting holes, and tap threads for DIN rails and components.

He tried combination drill-and-tap tools from Greenlee. Their tips appeared to be off-center and caused the tools to wobble, but they still drilled and tapped the panel effectively.

He designed custom 3D-printed labels for screw terminals, using thin prints and a 0.2 mm nozzle to make small text readable. He also printed numbered covers for plug-in terminal blocks, allowing him to disconnect panel wiring neatly when removing the panel.

For connecting two 12 AWG wires at a breaker, he used dual ferrules rather than trying to fit two separate ferrules into one terminal.

He adopted a Brady M511 industrial label printer for wire markers. It prints heat-shrink sleeves and other labels, including clear-overlaminated cable-wrap labels. One roll of heat-shrink labels repeatedly jammed, but Brady support replaced it; other rolls and label types worked.

A Milwaukee M18 heat gun worked well for shrinking wire labels after installation. James’s preferred approach was to leave labels loose while routing wires, orient the text, and then shrink them in place.

Wiring and Completed Layout

James says wiring the panel took about three to three-and-a-half hours, working methodically one wire at a time. His chosen wire colors and sizes were:

• 12 AWG black for AC phases
• Green for ground
• 18 AWG red for AC control wiring
• 18 AWG blue for DC control wiring
• 20 AWG in a few low-power signal locations where 18 AWG would not fit

The finished layout separates high-voltage components and wiring from the 24 V and 5 V control wiring. The servo’s main AC feed passes through a circuit breaker and EMI filter before reaching the drive.

A 50-pin I/O connector on the drive was difficult to wire because it has no labeled terminals. James soldered the signal wires to the connector and labeled some wires by their function at the drive end. As a result, some wire labels do not exactly match the terminal-block labels. He notes that this is not ideal, but says the wiring diagram will clarify the connections.

He left some short high-voltage runs outside the cable ducts to save cabinet space while securing and routing them neatly. He considers this a practical compromise.

Planned cabinet work includes adding a fan, routing motor and encoder cables, installing external connectors, and completing the MASSO expansion-board wiring. He will then program MASSO and test the spindle in a later video.
