96. Línea principal Samsung

Technological concepts covered

“Main signal / main line” power distribution in mobile phones (iPhone vs Samsung)

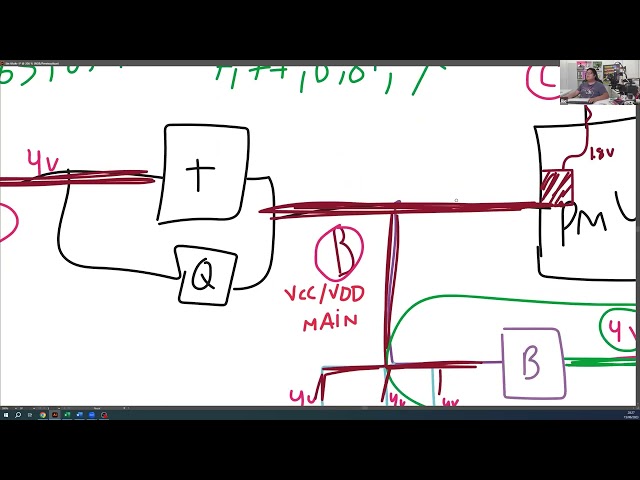

• The video treats the phone’s electrical “main signal” as a transverse power line that persists even when the phone is off.
• When the phone turns on, additional/secondary signals appear, but the lesson focuses on the main signal that always exists.

Block-diagram approach using voltages (not just circuit names)

• A recurring diagnostic cue is the presence of specific power rails, notably:
  • 4V-type rails
  • 1.8V-type regulated rails
• The speaker emphasizes that in diagrams you can often judge functional relevance by checking:
  • where the rail exists as input vs output
  • whether outputs have 4V at steady state vs only appearing after power-on

Sectors (iPhone) vs systems (Samsung)

• iPhones: The main line can be grouped into sectors A/B/C, and later simplified in newer models through increased integration.
• Samsung: The main line is classified into four “systems” (System 1–4), mainly differing by how the power key is connected within the main-line power architecture.

---

Key product features / functional behavior described

Power button (Power Key) role in power-on

• The power button acts as a switch/bridge between rail lines and/or ground so the PMIC can detect the request to power on.
• Two contrasted behavioral cases:
  1. System where the power key shorts a regulated rail
     • described as producing a “short circuit” condition so the PMIC detects it
  2. System where the power key bridges the higher rail
     • described as allowing 4V propagation toward the PMIC to trigger state changes
• Diagnostic method stressed in the video: identify whether Power Key behavior is 1.8V-related or 4V-related.

Main rail integration increasing across models

• The speaker claims circuit blocks become more integrated into fewer ICs in newer device generations.
• This reduces the visible number of discrete stages/elements while preserving overall functionality.

---

Samsung-specific power IC naming and partitioning

Charging + data handling differences (iPhone vs Samsung)

• iPhone:
  • charging handled by one circuit (referred to with an iPhone-like name, referenced as Tigris)
  • data handled by another (referenced as TR / similar naming)
• Samsung:
  • charging and data treated as being in a single integrated circuit referred to as “IF” (speaker terminology)
  • MOSFET is said to be always present but integrated in Samsung

Samsung main-line sectors (terminology used)

• A first sector tied to battery voltage:
  • B battery (bbat) (battery-voltage line)
• A second sector spanning from that rail toward the PMIC (label varies by model), with examples like:
  • BBAT/Main/Power
  • VPH Power
  • BDD System
  • VSIS
• A power-key-related sector tied to the PMIC input/regulation.
• The speaker notes that exact labels vary by model, so the approach relies on:
  • voltage behavior
  • connectivity rather than memorizing one naming scheme.

---

The “four Samsung main-line systems” (System 1–4)

The core framework: almost all Samsung models can be mapped into one of four main-line architectures, distinguished primarily by:

1. Whether the power key is connected via a regulated 1.8V rail or directly via 4V-type rails
2. Whether intermediate blocks are included or collapsed
   • the speaker mentions elimination/collapse of IF/PMIC paths across System variants
3. How the main-line rail feeds the PMIC, and what rail is present at the power-key detection path

The repeated assertion:

• Systems are derived by duplicating a baseline main-signal diagram and then “eliminating” or redirecting the power-key/regulation sections.

---

Tutorial/guide workflow demonstrated (schematic tracing)

Where to start in schematics

• Start from the battery connector
  • it may not be easy to find by exact label
  • the speaker instructs finding it by shape and naming, even when labeling is unclear
• Then identify the next main-line elements:
  • IF/PMIC/inductor (L)
  • and the output rails such as VPH Power / BBAT / etc.

How to trace rails

• Use terminal/net names like LX (associated with inductors/switching nodes)
• Detect rails by:
  • voltage expectation (4V-style main rail vs 1.8V regulated rail)
  • jumpers/layer changes
    • bold/bridge symbols are treated as places where rail names change, while the electrical rail continues conceptually

How to verify which System applies

• Locate the Power Key symbol/label.
• Determine whether the Power Key path corresponds to:
  • 1.8V behavior (PMIC detection via regulated rail shorting), or
  • 4V behavior (PMIC detection via higher rail bridging)
• The speaker uses examples across multiple family lines (e.g., J-series, A-series, S-series) and claims they map into the same framework.

---

Mentions of tools/programs

• The speaker refers to using schematic/wiring software (subtitle names appear as “dzkj” and “zxw”) to:
  • search schematics
  • trace nets/rails
  • verify where rails connect to the PMIC and power key

---

Reviews / recommendations

• The “course” is framed as a live cell phone repair course, described as “basic but complete.”
• No consumer product reviews are provided.
• Instead, it’s positioned as a learning/diagnostic tutorial focused on schematic tracing and power-on troubleshooting.

---

Main speakers / sources

• Main speaker: Referred to repeatedly as “Professor / Teacher” (no specific name given).
• External sources: No explicit citations besides the instructor’s course framework and schematic references (Samsung/iPhone model schematics).
