Time Shifting of Continuous-Time Signals

Main summary

Key takeaways

Educational

Main ideas / concepts covered

  • The lecture reviews time-shifting as one of the basic operations on continuous-time signals (as distinct from amplitude shifting, which is covered in the next lecture).
  • Two types of time shifting are discussed:
    1. Time shifting (with constant (K) added to time) → leads to time advance (left shift)
    2. Time shifting (with constant (K) subtracted from time) → leads to time delay (right shift)

Key definitions and methodology

  • Original signal: (x(t))
  • After time shifting, new signal: (y(t))

General time-shift rule

  • The shift is performed by changing the input time variable:

    • Add a constant (K) to time: [ y(t) = x(t+K) ]

    • Subtract a constant (K) from time: [ y(t) = x(t-K) ]

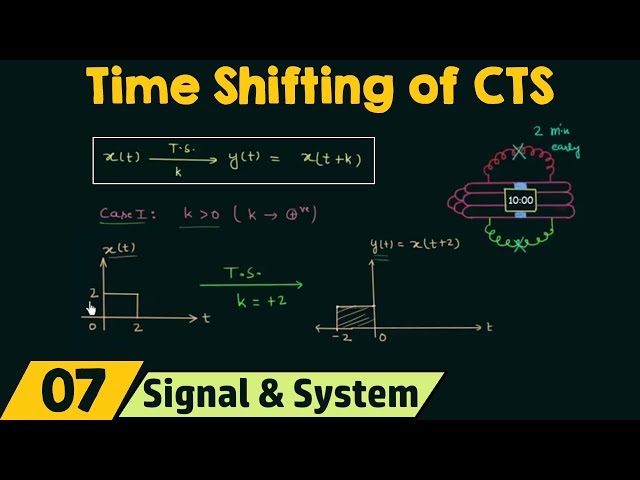

Case 1: (K > 0) (Left shift / Time advance)

  • The lecture uses: [ y(t) = x(t+K) ]

  • Interpretation: Adding (K) effectively makes the event described by the signal occur earlier by (K) seconds. The lecture emphasizes the phrase: “adding to the instantaneous time causes earlier occurrence.”

Example (from the lecture)

  • Original signal (x(t)):

    • (x(t)=0) for (t<0)
    • (x(t)=2) for (0 \le t \le 2)
    • (x(t)=0) for (t>2)

  • Time shift with (K=+2): [ y(t)=x(t+2) ]

  • Resulting behavior: The entire waveform is shifted to the left by 2 seconds (time advance).

Important note (real-time vs recorded-time)

  • “Advancing” a signal is not possible in real time; it is possible only if the signal has already been recorded / known.

Timer/bomb analogy (intuition)

  • Scenario: A bomb is set to explode at 12 minutes.
  • Cutting the red wire makes it explode 2 minutes earlier (at 10 minutes).
  • The analogy maps this to time shifting: increasing the “instantaneous time” by 2 minutes makes the event happen earlier by 2 minutes.

Case 2: (K < 0) (Right shift / Time delay)

  • The lecture uses: [ y(t) = x(t+K) \quad \text{with } K<0 ]

  • Equivalently shown: [ y(t) = x(t-2) \quad \text{when } K=-2 ]

  • Interpretation: Subtracting from instantaneous time makes the event occur later by (|K|) seconds.

Example (from the lecture)

  • Original signal (x(t)):

    • (x(t)=0) for (t=-2)
    • (x(0)=3)
    • (x(t)=0) at (t=2) (used to form the segment/shape described)

  • Time shift with (K=-2): [ y(t)=x(t-2) ]

  • Resulting behavior: The entire waveform is shifted to the right by 2 seconds (time delay).

  • The lecture explicitly lists sample output values:

    • (y(0)=0)
    • (y(2)=3)
    • (y(4)=0)

Real-time vs recorded-time note

  • Time delay is treated as the natural/real-time case (contrasted implicitly with time advance).

Final lessons emphasized

  • The shape remains the same during time shifting; only its horizontal position changes.
  • With time shifting:
    • (K>0) → left shift / time advance
    • (K<0) → right shift / time delay
  • Advancing a signal can’t be done in real time, but can be done on recorded signals.

Speakers / sources featured

  • No other speakers or external sources are mentioned; the content appears to be delivered by a single instructor/lecturer (the narrator).
