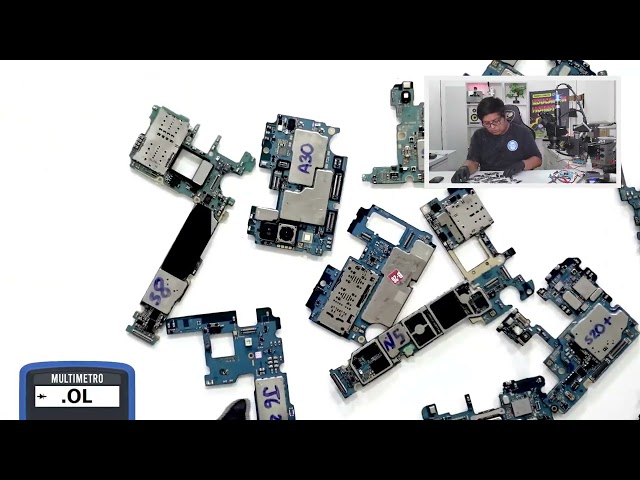

98. Medición señal principal Samsung

Main summary

Key takeaways

Technology

Main technological topic

This video is a tutorial/guide on measuring and diagnosing the “main signal” power path on Samsung phones—especially when troubleshooting power/boot issues. The speaker explains how to:

  • Identify the battery connector
  • Determine which pins are positive/negative
  • Trace the power conversion circuitry using schematics/layouts
  • Use multimeter-based “sector” isolation to locate where a short or fault is occurring

Key concepts: Samsung “main signal” structure (power rails)

Systems/sections overview

  • In theory, Samsung’s main signal path can contain up to four systems/sections.
  • In day-to-day troubleshooting, you most often encounter two primary systems (with the remaining ones being rarer/specific models).

Power-path definition (conceptual chain)

The tutorial defines the main signal as being fed through:

  • Battery connector → integrated circuit (charging/control/data from USB charger) → intermediate frequency (IF) stage → main output power rails

Endpoints and power-button line

  • Endpoints route signals toward a PMIC (“main integrated circuit”)
  • From there, signals go to the power button line

Two common system types (power button voltage differs)

  • System 1: power button line is about 1.8 V
  • System 2: power button line is about 4 V

Visual sector description

  • The two “systems” are also described visually as different sectors/colored regions:
    • The first includes a power-button signal
    • The second derives the power-button signal differently

“Ideal world” measurement workflow (fault diagnosis strategy)

The speaker emphasizes a repeatable diagnostic approach:

  1. Know what the “good” signal looks like (ideal/working conditions)
  2. Compare measurements to the damaged case
  3. Apply the same measurement logic across models (similar to an earlier iPhone lesson)

Step-by-step guide: identifying the battery connector + polarity

1) Find the battery connector first

The main power signal comes only through the battery connector, so identifying it is the first step.

2) Connector types vary by generation/series

Battery connector identification differs by phone generation/series:

  • Common in older low-end: 4-pin connector (or close variants)
  • Many mid/high/other series: multi-pin connectors, where typically only two pins are positive/negative
    • Other pins may include ID/identification lines

3) Battery ID / identification pin matters

  • Some batteries require an ID line (BAT ID)
  • If you connect only positive/negative, the phone may not power on even if voltage/current look correct

4) Use multimeter continuity to determine polarity

The speaker’s method:

  • Confirm continuity mode works:
    • probe-to-probe near 0.001 Ω
  • Test each pin:
    • the pin that beeps is typically negative (low resistance to ground/chassis)
    • the non-beeping pin is typically positive

5) Supporting heuristics (not primary)

  • Silkscreen markings or connector/flex labeling sometimes indicates polarity
  • Physical size/placement of pins can hint polarity
  • However, continuity measurement is the core method

Using software/layouts to trace components in the main signal

The tutorial uses schematic/layout tools (referred to as DzkJ / terminal block, plus additional layout tools). When dynamic layouts fail, it references a PDF fixed layout.

Component searching and trace strategy

The speaker uses:

  • Component search by designators, e.g.:
    • C4083, ZD4000, C4102
    • L4011 / L5000
    • PMIC-adjacent capacitors
  • A practical tracing flow:
    • Trace from battery connector upward to locate:
      • input filtering/protection components (diode + capacitor near input)
      • the IF stage
      • output stage tied to PMIC input rails
      • power-button line voltage expectations (helps confirm 1.8 V vs 4 V case)

Validating the two main system behaviors (1.8 V vs 4 V)

“Ideal world” voltage checks

The speaker demonstrates checks at multiple node types:

  • Near the initial diode/capacitor at the battery connector input:
    • should show the supply rail (often 4 V in the demonstration)
  • At IF/IFP-related capacitors:
    • verify correct propagation
  • At PMIC input-side capacitors:
    • confirm main rails are present

Power key line validation

Then check the power key line:

System 1

  • Verify 1.8 V on both sides:
    • PMIC-side
    • button-side
  • Conceptual “button press” test:
    • bridge the button terminals (short the two lines)
    • expected outcome: phone should begin drawing current / start boot behavior

System 2

  • Repeat quickly:
    • power key line is expected to show 4 V
    • rest of tracing logic is similar, but voltage expectations differ

Fault diagnosis: sector-based short-circuit localization

A major part of the video teaches how to localize shorts by dividing the main signal into sectors (A/B/C) and interpreting results differently depending on the measurement tool.

Behavioral clues from the power supply (current-draw)

When a short exists, the regulated power supply may show:

  • High current draw (spike up to current limit), or
  • Near-zero / low current if the short is not in the path the supply is forcing

The speaker notes that power-supply current limits can “react” differently than a multimeter because the multimeter applies only a small potential.

Behavioral clues from the multimeter (continuity / voltage-drop)

  • With the phone unpowered (or in a “low energy” state), multimeter measurements (continuity/diode/voltage-drop) can help detect where the short is by sector
  • Shorts may not propagate the same way under multimeter testing as they do under high-current forcing

Key logic emphasized

  • A power supply can mask or alter behavior versus how a multimeter “sees” continuity.
  • A short in one sector may not clearly affect other sectors under multimeter continuity tests (when the device is not powered), but can show broader effects with power-supply current forcing.

Practical sector workflow

  1. Measure sector-by-sector to identify which sector is shorted (continuity/voltage-drop)
  2. If sector A is shorted, it can be easier because it may contain prominent components (e.g., diode + capacitor near input)
  3. If sector B/C is involved, you may need more careful stepwise isolation (potentially covered in later lessons)

Example fault-solving demonstrations (conceptual)

The speaker demonstrates approaches such as:

  • Measuring continuity and voltage drops around IFP/IF components
  • Confirming whether the short impacts main signal sectors vs the battery side
  • Another demonstration focuses on locating a short when the phone draws abnormally high current by:
    • probing sectors
    • then narrowing components using schematic traces near the power key pathway

What the video is “teaching” (tutorial deliverables)

The tutorial provides a repeatable method to:

  • Identify the battery connector and polarity on Samsung boards
  • Understand battery ID pin requirements
  • Use schematics/layout tools to trace the main signal
  • Validate expected voltages to confirm system type (1.8 V vs 4 V power key)
  • Localize shorts using sector testing with:
    • regulated power supply behavior (current draw)
    • multimeter continuity/voltage-drop diagnostics
