HYPERGOLIC : The Most FEARED WORD in ROCKET SCIENCE

Main summary

Key takeaways

Science and Nature

Scientific concepts / nature phenomena presented

Hypergolic reactions

  • Hypergolic propellants ignite spontaneously upon contact with little or no external ignition source.
  • A key advantage is avoiding ignition delays, which are especially problematic when propellants must be injected precisely at high speed into a combustion chamber.

Propellants and oxidation

Rocket propulsion commonly uses:

  • Fuel: a substance that can burn and produce hot gases.
  • Oxidizer: provides oxygen (or oxidizing equivalents).

Because space lacks atmospheric oxygen, rocket engines must carry oxidizers onboard, often in liquid form.

Early oxidizer approach: oxygen vs. oxygen-bearing liquids

  • Nitric acid was proposed/used as an oxygen-rich oxidizer because it is already liquid (avoiding cryogenic compressed oxygen).
  • Downsides include strong corrosivity and materials compatibility problems.

Empirical discovery via brute-force screening

  • Engineers reportedly tested thousands of propellant pairs (plus additives) to find combinations that are truly hypergolic—i.e., they ignite on contact without relying on external heating/ignition.

Ignition delay measurement in combustion chambers

  • Experiments with transparent combustion chambers observed flashes severe enough to damage the chamber lid, illustrating how violent and fast hypergolic ignition can be.

Toxic hypergolic propellant couple: hydrazine + nitrogen tetroxide (NTO)

  • Hydrazine (fuel): described as “water-like” but highly toxic; dangerous via inhalation and skin exposure.
  • Nitrogen tetroxide (N₂O₄, oxidizer): a red liquid that can dissociate into nitrogen dioxide (NO₂) fumes; also highly toxic/corrosive.
  • Claim: despite extreme hazards, it ignites readily and provides strong performance, particularly high volumetric energy density.

Chemical mechanism framing

Hypergolic behavior is attributed to:

  • Instability/reactivity and a fast reaction between fuel and oxidizer.
  • NTO/NO₂ chemistry described as including equilibrium:
    • N₂O₄ ⇌ 2 NO₂, supporting rapid reaction readiness.

Use and applications of hydrazine

Beyond rocketry, hydrazine is mentioned as used for:

  • F-16 emergency electricity generation (gas generator concept)
  • A WWII rocket plane anecdote (noted as having killed more pilots than enemies)
  • Drag racing fuel

Rocket-specific hypergolic variant:

  • MON-3: nitrogen tetroxide mixed with nitrogen oxide, with ~3% nitrogen oxide (plus additives to manage the freezing point).
  • Example engine pairing:
    • MMH (monomethylhydrazine) as fuel
    • NTO / N₂O mixture as oxidizer

Combustion products

  • The flame is claimed to be “fairly clean,” dominated by nitrogen gas and steam, implying low/no carbon emissions in the narrative (since carbon-containing products are not emphasized).

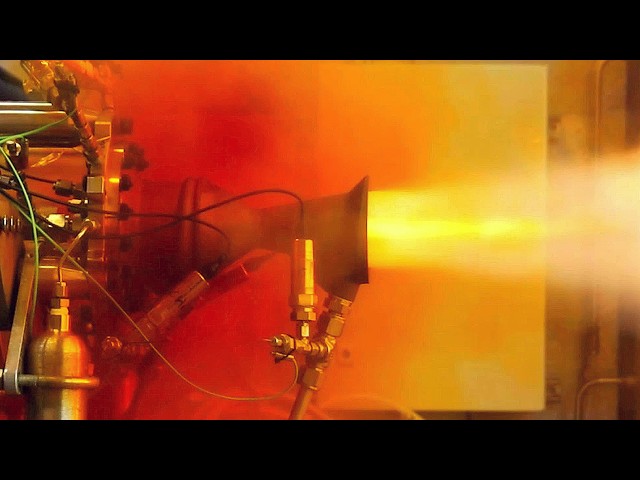

Materials and engine hardware

  • Engine described as 3D printed using nickel alloys (guess: Inconel).
  • Expansion cone described as made from a niobium alloy melting at extremely high temperature.
  • Testing includes vacuum simulation using large vacuum-pump infrastructure.

Alternative (extreme) oxidizer: fluorine and chlorine trifluoride

  • Fluorine is suggested as a stronger oxidizer than oxygen in general chemical terms.
  • Chlorine trifluoride (ClF₃):
    • Described as hypergolic with (almost) everything, including:
      • Glass
      • Water
      • Asbestos
    • Extremely hazardous due to rapid reaction and severe corrosive effects (described as melting flesh and burning bones).
    • Storage is said to be possible only via formation of a stable protective compound on compatible container materials.

Methodology / process outlined (as described)

Propellant pair discovery

  1. Choose candidate fuel/oxidizer compounds (often using oxygen-rich oxidizers such as nitric-acid-like carriers).
  2. Test many combinations (thousands reported).
  3. Evaluate whether the pair:
    • Is truly hypergolic (combusts on contact), versus
    • Merely ignites after heat release—noting distinctions such as cases where ignition is delayed and driven by heat generated during earlier reaction (e.g., sodium on water).

Researchers / sources mentioned at the end

  • Robert Goddard (father of modern rocketry; includes a “Crazy Bob” anecdote)
  • Frederick Slayer (credited with discovering the hypergolic concept by mixing nitric acid and turpentine)
  • John D. Clark (rocket chemist associated with the chlorine trifluoride spill anecdote)
