  • Course scope: Introduction to Industrial Electricity (Class #1), focusing on the basic principles for assembling an electrical panel and building understanding step-by-step.
  • Understanding the local electrical grid (Lima, Peru):
    • The speaker emphasizes that in much of Lima the grid is distributed without a neutral wire.
    • In areas like Ate, Chosica, or Chaclacayo, a neutral wire is present—an important contrast.
    • As a result, the experiments and circuits discussed are performed without a neutral.
  • Three-phase conductor identification and color conventions (Peru):
    • The three-phase lines are labeled as:
      • L1 (R) → red
      • L2 (S) → black
      • L3 (T) → blue (Peru’s convention for a 3-phase system without neutral)
    • If a neutral existed, it would be white, but neutral is not used in these experiments.
    • The instructor clarifies that electrical code color standards differ by country, and the class follows Peru’s National Electrical Code.
  • Types of power supply referenced (conceptual definitions):
    • Three-phase power supply: exemplified by measuring 220V between each pair of lines, with mention of the alternative case of 380V.
    • Single-phase power supply: involves a phase line and a neutral:
      • phase wire: black
      • neutral: white
    • Two-phase power supply (as used conceptually here):
      • since experiments are done without a neutral, the practical idea is working with two lines (line 1 and line 2) rather than phase + neutral.

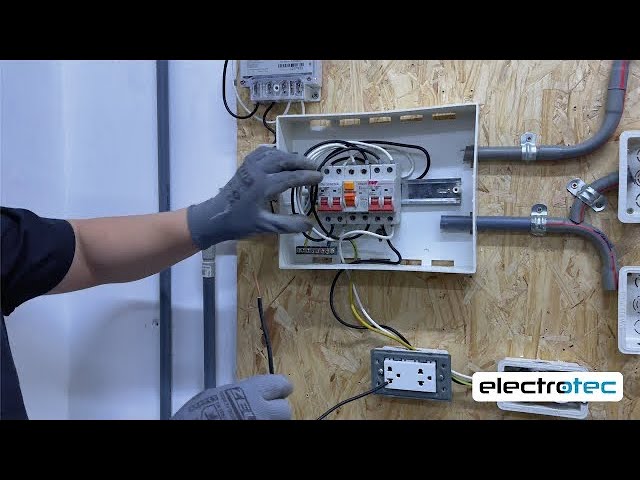

  • Core protection concept: thermomagnetic circuit breaker
    • The first panel element is the thermomagnetic circuit breaker.
    • It protects against two phenomena:
      • Thermal protection → overload
      • Magnetic protection → short circuit
  • Practical overload test (thermal behavior):
    • A 6-amp circuit breaker is used.
    • The instructor connects three portable air conditioners first to show low current initially.
    • Then a heater is used to raise the current and force overload behavior.
    • Key lesson: overload trip is delayed due to the tripping curve.
      • Even with a breaker rated at 6A, it may take time to trip.
      • Immediate activation requires roughly ~3× nominal current (example: around 18A).
      • In the demonstration, with the breaker around 9.5A, the trip occurred after about 5–10 minutes.
  • Practical short-circuit test (magnetic behavior + RCD behavior):
    • The short-circuit setup includes:
      • a circuit breaker
      • a residual current device (RCD / differential)
      • other panel components (as part of the test chain)
    • Observations:
      • Under short circuit, short-circuit protection is attributed to the thermomagnetic circuit breaker.
      • The RCD trips when leakage/current differential occurs; it is not the primary short-circuit protector.
    • Emphasis on division of responsibility:
      • Thermomagnetic breaker → overload and short circuit (as shown)
      • RCD (differential) → trips when current leakage/imbalance occurs (e.g., a leak to ground or unequal current)
  • Next panel element introduced: contactor
    • The second element discussed is the contactor.
    • The instructor defines it as an electromechanical device (electrical + mechanical parts).
    • Terminal naming convention:
      • Inputs: L1, L2, L3
      • Outputs: T1, T2, T3
    • Normally open contacts are described for pairs L1–T1, L2–T2, L3–T3.
    • Direct start wiring concept:
      • Connect L1→L1, L2→L2, L3→L3 (direct start configuration).
      • Connect the three-phase load to T1, T2, T3.
    • Load used for demonstration:
      • a 1 HP three-phase water pump / motor, connected at T1/T2/T3
      • The instructor notes you could connect single-phase loads to a contactor, but the demonstration is not graded on that.
    • Mechanical behavior (pressing/releasing):
      • Pressing allows current passage through L1→T1, L2→T2, L3→T3
      • Releasing stops the pump
    • Electrical behavior (coil and control voltage):
      • The coil has terminals A1 and A2
      • The demo coil is 220V AC (other common coil voltages mentioned include 110V, and 24V AC often used for safety in pumps)
      • The 220V coil supply comes from the two-phase circuit breaker terminals
      • Applying 220V to A1/A2 energizes the coil and closes the contactor to run the pump
      • De-energizing opens the coil path and stops the pump
    • Core takeaway: the coil energization controls mechanical switching that connects three-phase power to the load.

Methodology / step-by-step instructions (as demonstrated)

A) Identify the electrical system and colors (Peru, Lima without neutral)

  • Use three-phase lines without neutral.
  • Label and color per the class:
    • L1 / R = red
    • L2 / S = black
    • L3 / T = blue
  • If a neutral were present (not in these experiments):
    • neutral would be white.

B) Overload demonstration with thermomagnetic breaker

  • Select the thermomagnetic circuit breaker (example used: 6A).
  • Connect loads to the breaker (example loads):
    • portable air conditioners first (low/starting current)
    • then a heater to increase current draw
  • Measure current draw with a clamp meter during operation.
  • Increase load current until it exceeds the breaker’s nominal rating.
  • Observe timing:
    • understand that overload trips are delayed due to a time delay / tripping curve
    • note that roughly ~3× nominal is needed for faster/near-immediate behavior (example referenced: 18A for a 6A breaker)

C) Short-circuit vs leakage protection demonstration (breaker vs RCD)

  • Set up a short-circuit test that includes:
    • a thermomagnetic circuit breaker
    • an RCD / differential
  • Perform a short-circuit and observe which device trips.
  • Then emphasize leakage/differential behavior:
    • when current leak occurs, the differential/RCD trips
  • Key rule:
    • Thermomagnetic breaker: overload + short circuit
    • RCD/differential: leakage/current imbalance

D) Assemble and test the panel conceptually: three-phase breaker → contactor → motor (direct start)

  1. Wire the panel power routing
    • Energize the three-phase and two-phase breakers (via described jumpered connections).
    • Assign three-phase lines to breaker inputs:
      • L1 = red, L2 = black, L3 = blue
  2. Connect contactor power terminals
    • Connect three-phase breaker output to contactor inputs:
      • to L1, L2, L3 on the contactor
  3. Connect the load to the contactor outputs
    • Connect the three-phase motor/water pump to T1, T2, T3
  4. Test direct start
    • Configure so that closing the contactor connects L1→T1, L2→T2, L3→T3 (normally open contacts)
  5. Connect and energize the contactor coil (electrical control)
    • Identify coil terminals A1 and A2
    • Supply 220V AC to A1/A2 from the two-phase circuit breaker terminals
    • Verify:
      • coil energized → pump runs
      • coil de-energized → pump stops

Speakers / sources featured

  • Professor / Instructor — primary speaker demonstrating concepts and wiring.
  • “Young man” / “Teacher” prompts — student/participant prompts mentioned verbally during Q&A moments (no specific names given).
  • Sources: No external sources cited beyond references to the Peruvian National Electrical Code.
