Universo Mecánico 30 Capacidad y Potencial

Scientific concepts / discoveries / nature phenomena

1) Electric “fluid” and the early capacitor idea (Benjamin Franklin; 1745 Leiden accident)

Background belief: electricity as a fluid that could be moved into water.

Method described (Leyden-jar precursor experiment):

• A bottle of water is stopped with a stopper pierced by a long needle.
• The needle is held in contact with the pole of an electrostatic generator so the “electric fluid” enters the water.
• When the needle is removed, a surprising effect is observed—leading to the recognition of the Leyden jar.

Discovery highlighted:

• The Leyden jar (also called an “air bottle”) as an early electrical device storing charge—an early form of a capacitor.
• Later explanation: charge flows rather than being “created/destroyed,” and the jar functions by separating charge between internal and external conductors.

2) How electricity is measured/handled socially (electricians’ “rituals”)

Not a scientific result, but a description of experimental culture:

• Electricians judged strength mainly by feeling shock.
• After the Leyden jar, shock became far more dangerous and more people were harmed.

3) Electric potential, work, and electric fields (conceptual physics section)

Electric force and work:

• In a region near a positive charge, the electric force repels a positive test charge.
• An external force must move the charge closer, performing work against the electric force.

Work classification:

• Positive work if motion has a component opposite the electric force.
• Negative work if motion has a component along the force.
• Zero work if motion is perpendicular to the force.

Net work and potential energy:

• Net work = the integral of (electric force) · (displacement) along a path.
• Net work equals the change in potential energy of the test charge.

Electric potential difference (voltage):

• Potential energy change depends on a quantity defined by the electric field and the path.
• That quantity is the electric potential difference, measured in volts.
• In this framing, potential depends only on position (not on the path).

4) Two types of charge and basic charge behavior (Franklin’s interpretation and modern corrections)

Franklin’s model:

• Positive objects: “excess” electric fluid.
• Negative objects: “deficit” electric fluid.
• Opposites attract, like charges repel.

Modern concept emphasized:

• There are two kinds of charge (positive and negative).
• Charge is conserved (not created/destroyed), but can flow between objects.
• Franklin’s fluid picture is described as imperfect, but directionally advanced.

5) Electric field inside conductors (and potential in conductors)

• Inside a metal conductor, the electric field is zero.
• If a metal has net charge, it resides on the surface so the interior field cancels.
• Between two oppositely charged conductors, there is an electric field in the region between them.

Potential in conductors:

• A conductor is at constant potential throughout its interior.
• Potential difference depends on the amount of net charge (negative reduces, positive increases).

6) Capacitors: how capacitance relates to geometry and wiring

Battery effect:

• A battery connected between two conductors causes charge to flow until the potential difference equals the battery’s voltage.
• This establishes an electric field between the conductors.

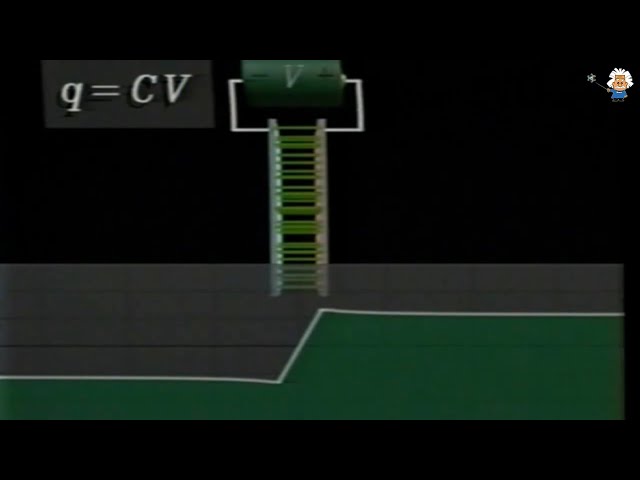

Charge storage proportionality:

• The charge transferred is proportional to the applied voltage.
• The proportionality constant is capacitance.

Leyden jar as a capacitor:

• The jar effectively provides separated conductors (internal vs. external conductor), producing capacitance.

General capacitor claim:

• Any two pieces of metal can form a capacitor, regardless of shape.

Parallel-plate field explanation:

• Electric field arises from charge layers on facing surfaces.
• Between charged layers (facing plates), the field is constant (as described).

Series vs parallel (electric battery analogy):

• Parallel connection of capacitors increases total capacitance (compared to series, which gives smaller capacitance).
• Franklin’s term “electric battery” corresponds to parallel-connected capacitors.

7) Lightning rod and lightning experiments (nature phenomenon: lightning)

Lightning rod principle:

• A metal rod on a building roof is placed; in theory it draws charge from a storm.
• A spark can jump from the rod to another conductor/wire.

Historical experiment (kite + key):

• Instead of a direct lightning rod approach, a kite with rods and a silk scarf is used.
• A metal key is attached to the kite string.
• During a storm, a spark is observed transferring to the experimenter’s hand (Franklin’s famous kite experiment is referenced).

Lightning protection and earlier mistaken practices:

• Cities rang bells, believing it scared storms away; bell structures sometimes attracted lethal lightning.

Rod design detail:

• Franklin believed rod ends should be pointed.
• An English competitor preferred round heads.
• The video claims Franklin’s pointed design is correct.

Political detail affecting rod designs:

• King George III allegedly decreed round-ended rods in England, framed as changing natural behavior by law.

---

Researchers / sources featured (named in the subtitles)

• Benjamin Franklin
• Andreas Brooks (assistant mentioned in the 1745 Leiden narrative)
• Vincler (German; mentioned as an exception who avoided direct shock)
• Isaac Newton
• Tommasois-François (Gabriel) G(ab)art (Gabart; credited with following printed lightning-rod instructions)
• Richard (appears in context of almanac/publishing; exact full name unclear)
• Louis XVI
• King George III
• Paralysis treatment medical contemporaries (mentioned generally; no names)
