Video summary

피지컬 ai 7

Main summary

Key takeaways

Science and Nature

Scientific concepts / discoveries / nature phenomena

  • Line tracing / path following in robotics

    • Some competition vehicles can complete tasks in only a few seconds, motivating fast path-following methods.

  • Insects’ navigation and “path integration”

    • Insects can return straight home even after taking complex routes to find food.
    • This is linked to path integration (also called dead reckoning).

  • Dead reckoning / path integration (robot pose estimation by motion accumulation)

    • Watchtower + wind example: if wind speed is assumed constant, classical prediction uses
      • distance = speed × time
    • But real motion has uncertainty and modeling error.
    • Odometry is the continuous accumulation of internal motion changes.
    • Uncertainty grows over time, often visualized as an expanding error ellipse as trajectory length increases.
    • Distinguishes between:
      • Odometry pass: estimated path from accumulated internal movement
      • Real pass: actual path

  • Coordinate estimation limits and error sources

    • Turning example: commanded 90°, but actual turn differs due to:
      • slippery/titled floor
      • misaligned motor installation
      • manufacturing defects
      • resistance/traction issues
    • Result: odometry-based heading/position drifts.

  • Indoor localization when GPS is unavailable

    • GPS works for outdoor positioning.
    • In indoor spaces/caves, GPS fails, so robots use other sensing methods.

  • IMUs and inertial navigation (using gyroscopes/accelerometers)

    • IMU (Inertia Measurement Unit) measures:
      • acceleration
      • angular velocity
    • From these measurements, the robot estimates:
      • speed
      • the directional tangent of its path
    • Gyroscopes support turn/junction estimation (as described in the talk).

  • Ultrasound sensing and collision-based avoidance

    • Uses ultrasound (described like a bumper ultrasound sensor) to detect nearby obstacles/hits.
    • Enables reactive avoidance when the robot deviates from expected motion.

  • Vision-based SLAM (“Ceiling SLAM”) / simultaneous mapping and localization

    • A camera is mounted on top.
    • The system looks at distinctive ceiling patterns to identify the room/location.
    • Conceptually, SLAM means:
      • the system “draws a map and knows its own location at the same time”
    • Localization uses landmarks (what it observes).

  • LIDAR-based landmark measurement

    • Mentions a LiDAR device that:
      • rotates
      • measures the surrounding 360°
    • Location is inferred by matching measured distances to expected landmarks.
    • Not every location is equally distinctive—only some places provide enough geometric information.

  • Odomei / odometry + landmark correction

    • Internal odometry alone drifts; even if you think you moved “three steps,” the real observed position may differ.
    • Observing landmarks (e.g., “opening eyes” and seeing features) corrects the estimate.

  • Exploration strategies for mapping unknown spaces

    • Sensor cost matters, so the talk proposes simpler strategies than full expensive SLAM.

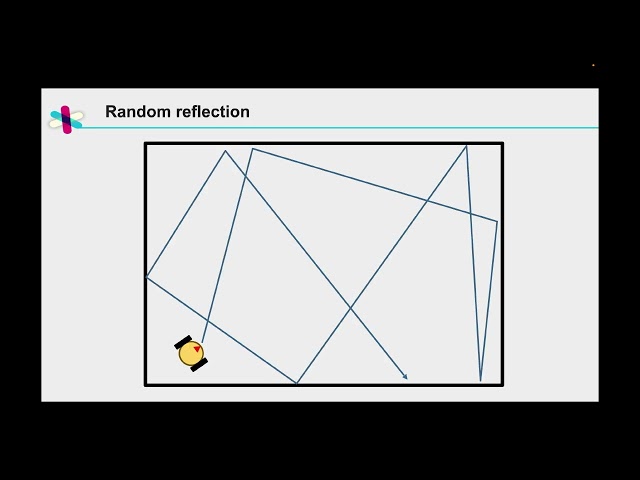

    • Example: random reflection / random bounces
      • move forward → hit wall → back up → rotate → go straight again
      • repeating indefinitely could eventually cover the map (posed as a strategy question)
    • Also suggested:
      • searching at a right angle
      • “snail” / spiral-like exploration
    • The speaker emphasizes designing:
      • an action strategy
      • a corresponding minimal sensor set to execute it

  • Mobile robotics architecture

    • Mobile robots need:
      • decision-making
      • controllers
      • sensors
      • actuators
    • Localization is critical for autonomous navigation, especially within SLAM.

  • Probabilistic localization with landmarks (belief updates)

    • Example assumption: visual features are only walls and doors.
    • When the robot sees a door, it maintains a probability distribution over possible locations (e.g., “one of three doors in front”).
    • As the robot moves and sees additional landmarks (door/wall features), it:
      • updates belief
      • narrows uncertainty
    • Odometry error spreads belief; new observations recenter and sharpen it.

  • Navigation planning around obstacles

    • Raises an algorithmic question:
      • If a wall blocks the desired path, should the robot:
        • climb over
        • go around
        • break through
      • “Best” depends on goals/constraints (framed as decision-making/planning).

  • Physical AI / robotics education goal

    • Aims to build systems that help children solve real situations using their own thinking.
    • Notes that AI needs quantitative scoring to guide preferred actions/values.

  • General open problems for autonomous systems

    • Practical challenges include:
      • no compass (no absolute heading reference)
      • sensor errors
      • landmarks changing or moving
      • unexpected relocation while trying to maintain position (robustness)
    • Ends with curiosity about how Tesla localization/autonomy works in practice.

Methodologies / processes mentioned (outline)

  • Dead reckoning / path integration

    • Measure internal motion changes (e.g., odometry/IMU).
    • Accumulate over time to estimate current pose.
    • Model error growth as uncertainty expanding (e.g., an error ellipse).

  • Landmark-based localization correction

    • Predict pose using odometry.
    • Observe a landmark (door/wall/visual feature).
    • Update belief/probability over location.
    • Repeat with subsequent landmark observations to reduce uncertainty.

  • SLAM concept (simultaneous localization and mapping)

    • Use sensors (camera, LiDAR, etc.) to map environment features.
    • Simultaneously estimate the robot’s pose relative to those mapped features.

  • Exploration strategy brainstorming (simplified movement rules)

    • Random reflection / bounce
      • forward until wall → back slightly → rotate → forward again → repeat
    • Alternatives proposed:
      • right-angle searching
      • spiral (“snail”) exploration

Researchers / sources featured (mentioned at end)

  • Not named in the provided subtitles.
  • A reference is mentioned: “September 2013 Evaluation Institute non-fiction section” (for the “path integration” item), but no individual author is specified.
