iPhone Duo Teardown – APPLE SHOULD APOLOGIZE

iPhone Duo Teardown Summary

Main Concerns

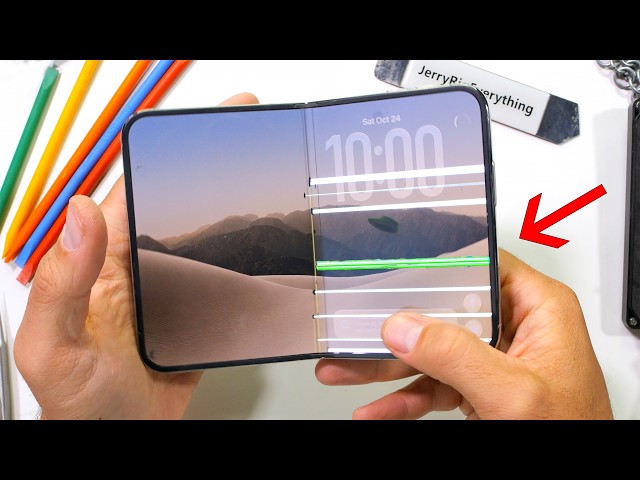

• Spontaneous display failures: The reviewer says some apparently undamaged iPhone Duos have developed green lines in the same location. He suspects a hinge component may be coming loose or breaking and pressing into the back of the display. He calls the suspected part the “Pixel Pincher 9000.” This is a teardown-based theory; he did not disassemble a phone that failed spontaneously to confirm it.
• Dust and sand ingress: In the reviewer’s dirt test, substantial debris collected inside the hinge despite the phone’s IP68 rating. He argues that the rating is based on stationary lab tests and may not reflect real-world protection in a moving foldable. Dust can reach the back of the flexible screen and potentially damage it.
• Two potentially distinct failure modes: In the reviewer’s view, dust can damage the screen in various places, while the suspected hinge defect may explain spontaneous failures at one consistent spot.
• Potentially expensive repairs: The reviewer says replacing the inner display costs about $1,000. The teardown also reveals roughly 95 different screw sizes, making repairs challenging, though Apple has published a detailed repair guide.
• Hinge construction: The hinge looks robust from the outside, but the reviewer describes its titanium exterior as mostly a cosmetic cover. The smaller internal hinge parts bear the mechanical stress.

Features and Positives

• Foldable display: The inner screen has a multilayer construction, including two layers of ultra-thin glass and metal-mesh reinforcement. The reviewer credits Samsung’s experience making folding displays and says the screen design itself is unlikely to be the cause of the suspected hinge-related failures.
• Design and build: He describes the exposed internals as unusually clean and attractive and says the phone may be Apple’s coolest-looking iPhone yet.
• Cameras: The rear setup includes a 48-megapixel main camera and a 48-megapixel wide-angle camera, but no telephoto camera. The reviewer verifies that Apple uses sensor-shift stabilization: the sensor moves to counter hand movement rather than the camera lens.
• Other hardware: The phone has an estimated 4-megapixel under-display camera, a 12-megapixel exterior selfie camera, and a vapor chamber to move heat away from the processor.
• Battery and repair features: The two batteries total 4,883 mAh—1,921 mAh and 2,962 mAh. Electrically debonding adhesive can release the batteries without prying; the reviewer says this method may remain useful for five to ten years. The batteries use 95% recycled lithium and 100% recycled cobalt.
• Modular USB-C port: The charging port is a separate modular component rather than being attached to the lower board.
• Dust protection inside the electronics: Metal shields kept the reviewer’s test debris out of the circuit-board compartment, even though debris accumulated in the hinge.

User Experience and Protection

The reviewer’s phone was damaged during a dirt-based durability test. He says it might have survived if dust had not gotten behind the display.

He removed the matte nano-texture screen layer, after which fingerprints and glare became more noticeable. He plans to use the iPhone Duo for 30 days and report on how it holds up.

The reviewer considers Apple’s cases inadequate for full-body protection: the folio leaves the sides exposed, while the regular case leaves the hinge exposed. He favors Dbrand’s Grip case for broader coverage, while noting that it cannot guarantee protection. Dbrand is identified as a channel sponsor.

Comparisons

• The reviewer compares the screen with Samsung’s folding-phone displays, noting Samsung’s many years of experience and the use of similar reinforcement layers.
• He compares the hinge with Samsung’s Fold 8 hinge segments and points out that Samsung’s design lacks the feature he suspects is causing the Duo’s localized screen damage.
• He contrasts Apple’s sensor-shift camera stabilization with the lens-shift approach used by Samsung and other manufacturers, describing Apple’s method as lighter and more responsive.
• He notes that other phones, including Samsung’s Galaxy S7, had vapor chambers earlier; Apple’s implementation is not presented as a first.

Verdict

The teardown reveals capable hardware and several repair-friendly choices, but the reviewer’s main conclusion is that the hinge and its exposure to dust create serious durability risks. He urges Apple to provide long-term warranty coverage for affected first-generation devices, especially given the cost of replacing the inner screen. No numerical rating or score is given.

Speaker’s Perspective

The reviewer praises the design, display construction, camera stabilization, modular port, and battery adhesive, but is sharply critical of the suspected hinge defect and real-world dust protection. His explanation for spontaneous failures in the same location remains a hypothesis, not a confirmed diagnosis.
