Energy Signals

Main summary

Key takeaways

Educational

Main ideas / lessons

  • Energy signals (definition): A signal is an energy signal iff its total energy is finite.

    • Total energy (E) is finite (i.e., not (\infty)).

  • Implication for power: For an energy signal (finite (E)), the average power is: [ P = 0 ]

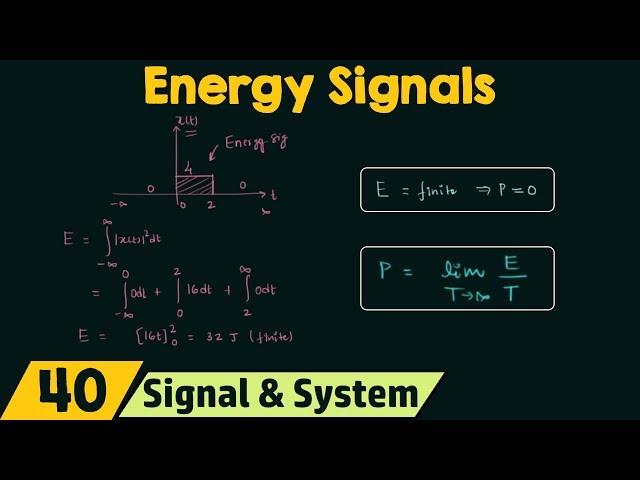

  • Example used to demonstrate the concept: The signal (x(t)) is finite-duration:

    • (x(t)=0) for (t<0)
    • (x(t)=4) for (0 \le t \le 2)
    • (x(t)=0) for (t>2)

Total energy is computed as: [ E=\int_{-\infty}^{\infty} |x(t)|^2\,dt ]

  • Why the average power becomes zero: Average power is energy divided by total (infinite) time. Since energy is finite but time considered grows without bound, the ratio tends to zero.

Methodology / instructions (as presented)

1) How to check whether a signal is an energy signal

  1. Given a signal (x_1(t))

  2. Compute total energy: [ E = \int_{-\infty}^{\infty} |x_1(t)|^2 \, dt ]

  3. Decision rule:

    • If (E) is finite, then (x_1(t)) is an energy signal.
    • If (E) is infinite, then it is not an energy signal.

Note from the lecture: If (E) is finite, you do not need to compute average power, because it will be (0).

2) Example energy calculation (signal equals 4 between 0 and 2)

For (x(t)) defined as:

  • (x(t)=0) for (t<0)
  • (x(t)=4) for (0 \le t \le 2)
  • (x(t)=0) for (t>2)

Compute: [ E=\int_{-\infty}^{\infty} |x(t)|^2 \, dt ]

Break the integral into intervals:

  • From (-\infty) to (0): value is (0)
  • From (0) to (2): (|4|^2=16)
  • From (2) to (\infty): value is (0)

Result: [ E = \int_0^2 16\,dt = 16(2-0)=32 ] (Joules in the subtitle)

3) Determining average power from energy

Average power is expressed as: [ P = \lim_{T \to \infty} \frac{E}{T} ] Since (E) is finite and (T \to \infty): [ P = 0 ]

4) Alternate intuition for (P=0) (area spreading)

After squaring, the instantaneous-power waveform has a finite “area” (equal to energy). When averaged over an infinite time axis, that finite area is effectively spread over an infinite length, so the average tends to zero.

Properties of energy signals (explicitly stated)

  1. Absolute integrability

    • Energy signals are absolutely integrable in the sense: [ \int_{-\infty}^{\infty} |x(t)|\,dt < \infty ]

    • Consequence:

      • If a signal is absolutely integrable, its Fourier transform exists (subtitle: “Fourier transform”).

  2. Energy equals area under (|x(t)|^2)

    • Total energy: [ E = \int_{-\infty}^{\infty} |x(t)|^2 \, dt ]

    • Geometric interpretation:

      • “Total energy of a signal is equal to the area under the (|x(t)|^2) graph.”

  3. Average power formula / result

    • Average power: [ P = \lim_{T \to \infty} \frac{\text{total energy}}{\text{total time}} ]

    • For energy signals: [ P=0 ]

  4. Mention of further properties

    • Additional properties related to:
      • shifting
      • scaling
      • reversal
    • These will be discussed after solving questions.
