Operational Amplifiers, Gain

Main Ideas and Concepts

An operational amplifier (op-amp) is an active, three-port device with two inputs—the non-inverting (+) and inverting (−) inputs—and one output. Its output responds to the voltage difference between the inputs, multiplied by the op-amp’s gain. An op-amp requires a power supply.

Ideal Op-Amp Assumptions

The following assumptions are commonly used when analyzing ideal op-amp circuits:

• Infinite open-loop voltage gain
• Infinite input impedance, so the inputs draw no current
• Zero output impedance
• Infinite bandwidth
• Zero input-offset voltage

Differential and Common-Mode Gain

• Differential gain amplifies the difference between the two input signals and should be high.
• Common-mode gain amplifies the part shared by both inputs and should be very low.
• The video gives typical practical ranges of about 100,000 to 100 million for differential gain and about (10^{-5}) for common-mode gain.

Gain and Bandwidth

Real op-amps have limitations. Typical gain-bandwidth products are about 1–20 MHz, although some video-oriented devices are faster. Increasing the gain set by the external resistors reduces the usable bandwidth. For many op-amps, the gain-versus-frequency relationship is approximately linear on a logarithmic scale.

The −3 dB bandwidth point is where the output amplitude falls to about 0.707 of its value at the reference frequency. For example:

• 1 V becomes about 0.707 V.
• 10 V becomes about 7.07 V.

Gain Configurations

Inverting Amplifier

The signal passes through an input resistor (R_i) to the inverting input. A feedback resistor (R_f) connects the output to that same input. In the lab setup, the non-inverting input is grounded.

[ \text{Gain} = -\frac{R_f}{R_i} ]

The negative sign indicates that the output is inverted relative to the input.

Non-Inverting Amplifier

The signal goes to the non-inverting input. The feedback resistor connects the output to the inverting input, while a second resistor (R_g) connects the inverting input to ground.

[ \text{Gain} = 1 + \frac{R_f}{R_g} ]

The output is in phase with the input.

Voltage Follower (Buffer)

Connecting the output directly to the inverting input produces a gain of approximately one. The buffer’s high input impedance minimizes loading on the source, while its lower output impedance allows it to drive a load more effectively.

Signal Adder

Multiple signals can enter an inverting stage through separate input resistors. The resistor values determine each signal’s contribution. A non-inverting version is also possible.

Practical Considerations

Input Offset

Real op-amps do not have infinite input impedance. In high-gain circuits, input currents can create an output offset if the reference input is grounded directly. A rule of thumb is to use a resistor to ground whose value equals the parallel combination of the gain resistors.

For this lab, the instructor says to ground the non-inverting input directly and ignore the resulting offset.

Power-Supply Decoupling

Decoupling capacitors should be placed close to the op-amp. The demonstrated setup uses a larger tantalum capacitor in parallel with a small ceramic capacitor on each supply rail.

Tantalum capacitors are polarized:

• On the +12 V rail, the positive side goes to +12 V.
• On the −12 V rail, the positive side goes to ground and the negative side goes to −12 V.

Reversing a polarized capacitor can damage it.

AD817AN Pinout

For the demonstrated AD817AN:

Pin Connection 2 Inverting input 3 Non-inverting input 4 Negative supply 6 Output 7 Positive supply

Pins 1, 5, and 8 are not used.

Lab Procedure and Measurements

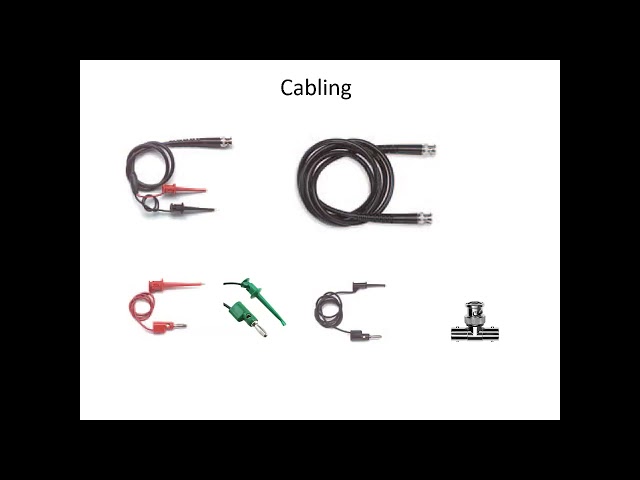

Equipment and Setup

Use a breadboard, op-amp, resistors, decoupling capacitors, dual power supply, function generator, and oscilloscope.

• Connect the function generator to oscilloscope channel 1 and the op-amp output to channel 2.
• Keep the grounds common.
• The demonstrations use a 1 kHz sine wave.
• Reduce the input amplitude at higher gains to avoid saturation. The instructor uses 200 mV peak-to-peak for lower-gain tests and 100 mV peak-to-peak for higher-gain tests.

Build and Measure the Inverting Amplifier

1. Ground pin 3.
2. Connect the input through a 1 kΩ resistor to pin 2.
3. Connect a 10 kΩ feedback resistor from pin 6 to pin 2.
4. Measure the input and output amplitudes, then verify the gain and inversion.
5. For higher gain, replace the 10 kΩ feedback resistor with a 100 kΩ resistor and reduce the input amplitude.

Build and Measure the Non-Inverting Amplifier

Turn off the supply before changing the wiring.

1. Move the input from the input-resistor path to pin 3.
2. Connect the former input resistor from pin 2 to ground.
3. Measure the lower-gain configuration.
4. Replace the feedback resistor with a 100 kΩ resistor for the higher-gain test.
5. Compare the measured gains with the resistor-based calculations.

Measure Gain and Bandwidth

1. Record the gain at 1 kHz.
2. Increase the function-generator frequency until the output amplitude falls to 0.707 of its 1 kHz value.
3. Record that frequency as the bandwidth.

As gain increases, bandwidth should decrease.

Demonstrate Source Loading and Buffering

1. Set the function generator to a 1 kHz, 5 V peak-to-peak signal.
2. Connect a 150 Ω resistor from the signal to ground and measure the reduced amplitude.
3. The reduction occurs because the generator’s roughly 50 Ω series output resistance and the 150 Ω load form a voltage divider.
4. Configure the op-amp as a voltage follower by connecting pin 6 directly to pin 2 and applying the input to pin 3.
5. Place the 150 Ω load on the op-amp output and measure the signal across the load again.

The buffer should prevent the source from being significantly loaded, keeping the output close to the input amplitude.
