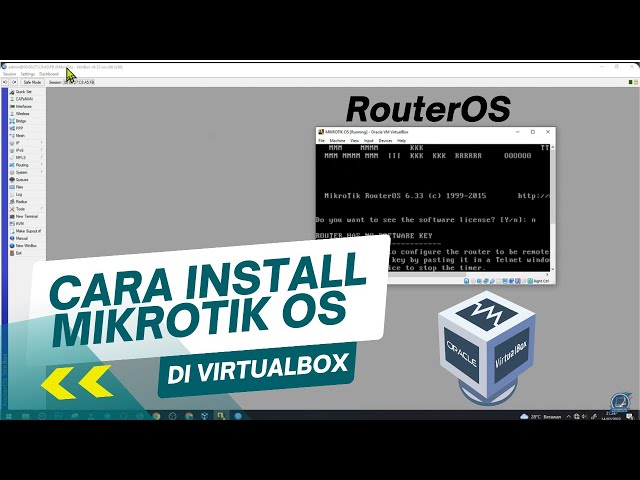

CARA INSTALL MIKROTIK OS DI VIRTUALBOX | FULL TUTORIAL

[MikroTik RouterOS](https://www.amazon.com/dp/B07X5MHR1Y?tag=dtdgstoreid08-20) Installation on Oracle VirtualBox

This tutorial provides a comprehensive, step-by-step guide on installing [MikroTik RouterOS](https://www.amazon.com/dp/B07X5MHR1Y?tag=dtdgstoreid08-20) on Oracle VirtualBox. It covers preparation, installation, and initial configuration to help users set up a virtualized MikroTik router environment.

---

Key Technological Concepts & Product Features

• MikroTik RouterOS A router operating system designed for network management and routing.

• VirtualBox Virtualization software used to run [MikroTik RouterOS](https://www.amazon.com/dp/B07X5MHR1Y?tag=dtdgstoreid08-20) in a virtual environment.

• Winbox Application A GUI tool for remote access and configuration of [MikroTik RouterOS](https://www.amazon.com/dp/B07X5MHR1Y?tag=dtdgstoreid08-20).

---

Installation Guide Highlights

1. Preparation

• Download the [MikroTik RouterOS](https://www.amazon.com/dp/B07X5MHR1Y?tag=dtdgstoreid08-20) ISO file (version 6.33 used in this tutorial).
• Download Winbox for GUI access.
• Recommended download sources:
  • routeros.co.id
  • mikrotik.com

2. VirtualBox Setup

• Create a new virtual machine (VM), for example named “mrotik”.
• Set the VM type to Other/Other 64-bit or as appropriate.

• Allocate memory: Recommended 512 MB (minimum 64 MB).

• Create a virtual hard disk: Preferably VHD format for portability, with 2–4 GB capacity.

• Mount the MikroTik ISO file to the VM’s optical drive.

• Configure network adapters:
  • Adapter 1: Set to Bridged mode to connect to the actual internet network.
  • Enable all four network adapters and set them to NAT for internal networking.

3. Installation Process

• Boot the VM and follow the on-screen prompts.
• Select all packages for installation by pressing the letter ‘a’.
• Press ‘i’ to start the installation.
• Choose not to keep old configurations when prompted.
• After installation, remove the ISO from the optical drive to avoid boot loops.
• Reboot the VM.

• Default login credentials: Username: admin Password: (leave blank)

• Skip license activation if not available.

4. Post-Installation Configuration

• Use Winbox to connect to [MikroTik RouterOS](https://www.amazon.com/dp/B07X5MHR1Y?tag=dtdgstoreid08-20) via MAC address discovery.
• Access the GUI for easier management.
• Verify network interfaces (eth1, eth2, eth3, eth4) corresponding to VirtualBox adapters.
• Change the router identity/name via System > Identity menu for easier identification.

---

Additional Notes

• The tutorial emphasizes minimal resource usage (memory and disk space) for running [MikroTik RouterOS](https://www.amazon.com/dp/B07X5MHR1Y?tag=dtdgstoreid08-20) in a virtual environment.
• Tips are provided for navigating keyboard controls during installation.
• Demonstrates how to unmount the ISO to prevent boot loops after installation.
• Shows how to use Winbox for GUI access instead of relying solely on the command line.

---

Main Speaker / Source

The tutorial is presented by the host of the “Iman Education” YouTube channel, who provides clear and detailed guidance throughout the video.
