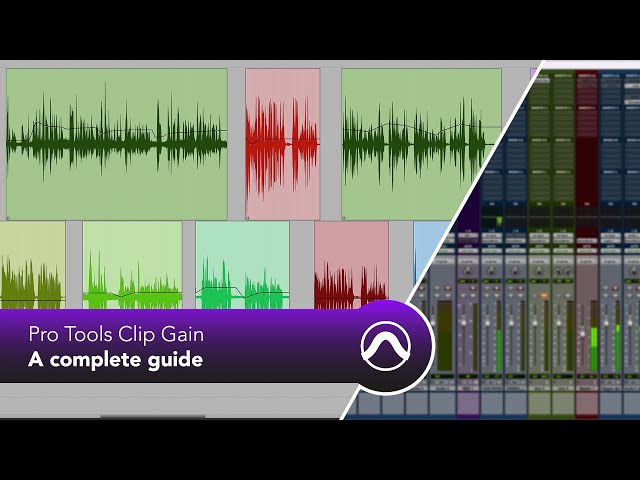

Pro Tools Clip Gain - A Complete Guide

Main summary

Key takeaways

Technology

Clip Gain in Pro Tools — Complete Guide (Tech/Product Features Summary)

What Clip Gain is for

Clip Gain is a fast way to adjust/match the gain of clips from different sources within a Pro Tools session.

Signal flow / placement (key concept)

Clip Gain is applied pre-insert, meaning it happens on the source clip before plugins and before the channel fader.

  • Especially useful in post-production dialogue to keep levels consistent before compression or other processing.

Level range

Clip Gain can boost up to +36 dB (and can also reduce levels).

How Clip Gain is edited

Basic (static) Clip Gain

  • Apply one gain value to the entire clip.
  • The clip gain line is flat.
  • The dB value is shown in the Clip Gain Info area.

Dynamic Clip Gain

  • Gain can vary across the clip (similar to volume automation).
  • Implemented using:
    • Grabber tool with breakpoints (add points and reshape the curve)
    • Option-click to delete breakpoints
    • Trim tool workflow (often used with Smart Tool-style selection + immediate trim)

Difference vs static: After dynamic changes, the Clip Gain Info display no longer shows a single absolute dB value, because there isn’t one fixed adjustment.

Dynamic scaling behavior

  • When adjusting the dynamic fader, Pro Tools scales the contour while preserving its overall shape.
  • The temporary readout shows a delta change (relative amount), not a fixed absolute value.

Clipping-related visuals

  • Dynamic Clip Gain affects the waveform representation to reflect its pre-insert impact.

Clip Gain controls (view, actions, playback modes)

Clip Gain Info view / clip gain line visibility shortcuts

  • Clip Gain Info can be toggled on/off.
  • The Clip Gain line can be shown/hidden.

Right-click fader options (4 actions mentioned)

  1. Bypass Clip Gain
    • Plays back with 0 dB clip gain adjustment
    • Breakpoints may appear faintly while bypassed
    • Useful for A/B comparison between original and clip-gained audio
  2. Clear
  3. Render Clip Gain
  4. Show/Hide the line (part of the right-click options)

Bypass vs Clear vs Render

  • Bypass: Temporarily suspends clip gain (effectively returns to 0 dB for playback).
  • Clear: Removes clip gain adjustments from selected material.
  • Render: Creates a new clip with clip gain “baked in,” resetting clip gain line settings afterward (defaulted to zero).

Shortcut workflow topics (automation-like editing)

Covered topics include:

  • Toggle Clip Gain Info / show-hide the line for faster editing.
  • Dynamic breakpoint editing using tools (grabber/trim) plus keyboard options.
  • Add breakpoints at cursor (shortcut provided, though the presenter prefers grabber in practice).
  • Emphasis on trim/grabber editing and selection-based editing.

Clip Gain vs Volume Automation (important analysis)

Conversion functions

  • Convert Clip Gain → Volume Automation
  • Convert Volume Automation → Clip Gain

No keyboard shortcuts for these conversion actions were mentioned; they’re accessed via the Edit menu.

Different limits (major constraint)

  • Clip Gain: up to +36 dB
  • Volume automation: limited to +12 dB

Therefore, converting Clip Gain → Volume Automation may lose values above +12 dB.

Different processing impact due to pre/post insert

  • Clip Gain is pre-insert
  • Volume automation is effectively post-insert

Result: compression and plugins respond differently, producing different audible outcomes.

Demonstrated concept

After conversion, compressor behavior changes because the gain is applied at different stages in the processing chain.

Coalescing Clip Gain and Volume Automation

Coalescing process (Edit menu)

Coalescing combines both clip gain and volume automation into one representation:

  • Coalesce Clip Gain → Volume Automation (clip gain flattened to zero)

  • Coalesce Volume Automation → Clip Gain (volume automation reset to zero)

Conversion/collapsing still must consider:

  • +36 dB vs +12 dB limitation
  • The total summed level

Additional editing operations mentioned

Nudging clip gain

  • Up/down arrow nudge with a modifier:
    • Default nudge is 0.5 dB increments
    • Configurable in preferences from 0.1 to 6 dB
  • Alternative: scroll mouse while holding the modifier to nudge gain.
  • Left/right nudge (time-based offset) via nudge keys with the clip gain modifier; amount follows the session’s nudge setting.

Copy/paste behavior

  • Copy/paste static or dynamic clip gain settings to other clips.
  • Paste timing/length rules:
    • If destination is shorter, paste affects only the overlapping portion.
    • If destination is longer, behavior depends on dynamic clip gain length (pastes only what fits / initial part, as described).

Pencil tool drawing details

  • Works with multiple pencil variants (freehand/line, triangle, square, random).
  • Parabolic/S-curves variants don’t work for clip gain drawing the same way.
  • Pencil drawing is constrained by an active time selection (unlike some other automation workflows).

Main speakers/sources

  • Single presenter/instructor: “hi everyone in this video…” (no specific name given in the subtitles)
  • Primary source: Auto-generated YouTube subtitles for “Pro Tools Clip Gain - A Complete Guide” (no external sources referenced).
