Video summary

pwn.college - Talking Web - URLs and Encoding

Main summary

Key takeaways

Educational

Main ideas and concepts

  • What a URL is and its components

    • A URL (Uniform Resource Locator) is made up of:
      • Scheme (protocol, e.g., http)
      • Host (domain/server, e.g., example.com)
      • Port (service endpoint on the server, e.g., 80 for HTTP)
      • Path (specific resource, e.g., /cat.gif)
      • Query (extra parameters for the resource, e.g., width/height)
      • Fragment (client-side info; not sent to the server)

  • Example URL purpose

    • Demonstrates a request to retrieve a resource like a GIF with additional parameters:
      • width
      • height
      • playback start time (described as part of client-specific handling via fragment)

  • How HTTP request parsing relates to URL structure

    • The request line format:
      • METHOD SP REQUEST-URI SP HTTP-VERSION CRLF

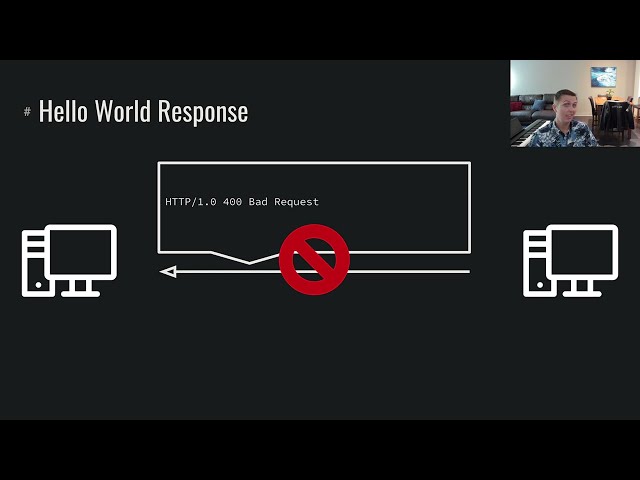

    • Problem scenario: if the request URI contains a literal space (e.g., hello world), the server may interpret it as delimiters and therefore:
      • mis-parse the request
      • think the client is speaking invalid/bad HTTP
      • return a “bad request” error

  • Solution: URL encoding

    • Spaces and other unsafe/unprintable/reserved characters must be encoded so the request parser stays in sync.
    • HTTP allows spaces in resources, but they must be encoded in the URL.
    • Encoding format:
      • % + two hexadecimal digits
    • Examples:
      • Space → %20
      • # → %23
      • / → %2F
      • ? → %3F
      • (Also noted: characters like A can be encoded optionally, e.g., A → %41)
    • Resulting behavior:
      • The server can correctly parse the request and return the intended resource (e.g., hello world accessed as hello%20world).

  • Encoding methods / content types for sending request data

    • The lecture transitions to how data is encoded in the body of requests, especially for POST-like interactions.
    • application/x-www-form-urlencoded
      • Used for typical HTML form submissions.
      • Structure:
        • key=value pairs
        • multiple fields separated by &
      • Example described:
        • name=Connor
    • application/json
      • Used for sending structured, hierarchical data.
      • Structure:
        • a JSON object with keys and values
      • Example shape:
        • { "key": "value" } (specifically { "name": "Connor" } in the description)
    • Why choose one over the other
      • Form URL encoded: convenient for simple form field submissions.
      • JSON: better for complex nested data and modern API communication.
    • Mentions JSON-based REST APIs
      • Clients make remote computation requests over HTTP.
      • Responses return data blobs (not HTML pages) that the client parses.
      • JSON is commonly used for this.

Methodology / instruction-style details (detailed bullets)

URL structure to use in requests

Build the URL using these parts:

  • Scheme: select the protocol (e.g., http)
  • Host: domain where the resource lives (e.g., example.com)
  • Port: choose the server port (HTTP default 80; may be omitted when standard)
  • Path: specify the target resource (e.g., /cat.gif)
  • Query: append key-value style parameters for resource behavior (e.g., width=256&height=256)
  • Fragment: add client-side-only reference (not sent to the server)

Fixing spaces / unsafe characters in a resource name (URL encoding)

  • When a resource contains characters like spaces (or reserved/unprintable chars), do not place them literally in the URL.
  • Encode each required character using:
    • '%'+hex-digit+hex-digit
  • Apply examples:
    • Replace space with %20
    • Replace # with %23
    • Replace / with %2F
    • Replace ? with %3F
  • Encode the problematic part of the request URI so:
    • the server’s HTTP parser does not misinterpret delimiters
    • the request is accepted and the correct resource is returned

Selecting request body content type (for POST-style data)

  • If submitting from an HTML form:
    • use application/x-www-form-urlencoded
    • encode body as:
      • field1=value1&field2=value2...
  • If sending structured/hierarchical data:
    • use application/json
    • encode body as a JSON object:
      • { "key": "value", ... }

Speakers / sources featured

  • No named speaker is identified in the subtitles.
  • Referenced standards / documents:
    • RFC 1945 (discussed in the context of HTTP request URI formatting and “bad request” behavior)
  • Referenced character encoding reference:
    • ASCII chart (used to determine hexadecimal values for URL encoding)
