The RCD Problem Nobody Warned You About!

Summary

The video explains why there is no universal rule that every heat pump needs a Type B RCD. The correct protection depends on the installation, the heat pump’s electrical characteristics, and the manufacturer’s instructions. A Type B device is not automatically the right choice, and a standard Type B may not meet every manufacturer’s requirements.

Key technical points

• First assess whether RCD protection is required. Cable routing and the installation method affect this requirement. The design should account for the actual cable route and the practical appearance of the installation.
• Check the heat pump manufacturer’s instructions. Requirements vary. The video contrasts Grant instructions, which it says allow Type B or Type F protection for certain pumps, with Vaillant aroTHERM plus guidance specifying Type B protection capable of operating at 20 kHz or higher, along with additional high-frequency requirements.
• RCD types are not interchangeable:
  • Type A may not be suitable for every inverter-driven heat pump.
  • Type F can suit some single-phase variable-frequency-drive loads when the manufacturer permits it.
  • Type B may be needed when the equipment’s residual-current characteristics require it.
  • Inverter electronics can produce leakage currents above the standard 50 Hz frequency, so high-frequency performance may matter as well as the RCD type.

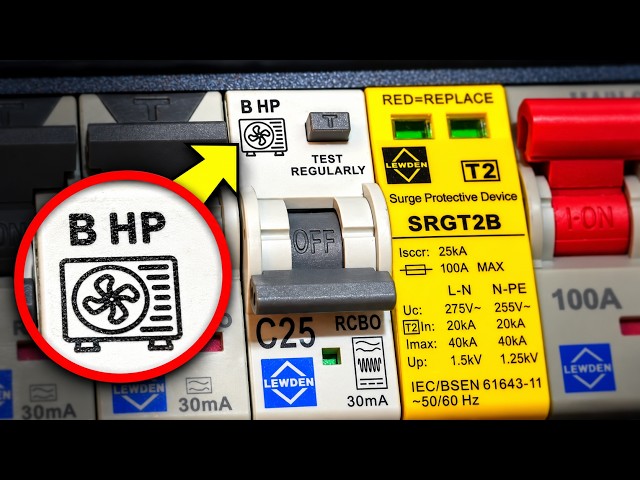

• A “Type B HP” device is a specific product feature, not just a label. The video describes Lewden’s heat-pump Type B HP RCD/RCBO range as designed for applications requiring extended high-frequency performance, including operation at 20 kHz and above. It may offer design flexibility when the final heat-pump model has not yet been chosen, but the manufacturer’s instructions still need to be checked before commissioning.
• If the instructions are unclear or silent, don’t guess. The video says BS 7671 requires RCD selection to reflect the equipment’s expected residual-current characteristics. It cites Heat Pump Association guidance recommending a cautious approach: seek clarification from the manufacturer, and, where compatibility with Type F cannot be confirmed, Type B may be required.
• RCD types and circuit-breaker curves mean different things. Types A, F and B describe residual-current detection. Breaker curves B, C and D describe overcurrent protection. A device can therefore combine, for example, Type B RCD protection with a C-curve breaker.
• Consider the wider installation, especially in TT systems. An upstream RCD must also be suitable for the residual current it may encounter. Adding a downstream Type B device does not remove the need to assess upstream protection. A separate heat-pump consumer unit may provide a more workable arrangement.
• Retrofits may benefit from a dedicated heat-pump panel. Existing boards can be full, incompatible with the required device, or poorly located. An indoor or suitably IP-rated outdoor panel can provide flexibility, but its location, housing and cable entries must be considered.
• Plan for all related circuits. A heat-pump system may include controllers, pumps, backup heating or a legionella-cycle heater. Separate RCBOs can provide individual protection, but a properly selected shared RCD with separate overcurrent protection may also be appropriate in some installations. The design should consider leakage current, nuisance tripping, circuit separation and the effect of a shared RCD tripping.

Practical guide: seven-step checklist

1. Assess the installation location and cable route.
2. Determine whether RCD protection is required.
3. Read the heat-pump manufacturer’s instructions.
4. Select the required RCD type.
5. Check for additional high-frequency requirements.
6. Assess upstream protection, particularly in TT systems.
7. Choose how to distribute and protect the heat-pump circuits—using the existing board, individual RCBOs, a shared RCD where suitable, or a dedicated panel.

The central message is to design around the specific equipment and installation rather than automatically buying the most expensive RCD.

Guides and resources mentioned

The video points viewers to manufacturer instructions, Heat Pump Association recommendations, Lewden’s heat-pump protection products, and eFIXX articles and free CPD materials on RCDs, circuit protection and heat-pump installations.

Main speakers and sources

• Main speaker: eFIXX presenter.
• Sources discussed: Grant and Vaillant manufacturer instructions, BS 7671, and Heat Pump Association recommendations.
• Product range featured: Lewden heat-pump RCDs/RCBOs and dedicated consumer units.
